Bosch Rexroth R101002500
R101002500
1 / 2
Reference Image - Not actual item!
Reference Image - Not actual item!
Product Description
Lifecycle Status:Successor:

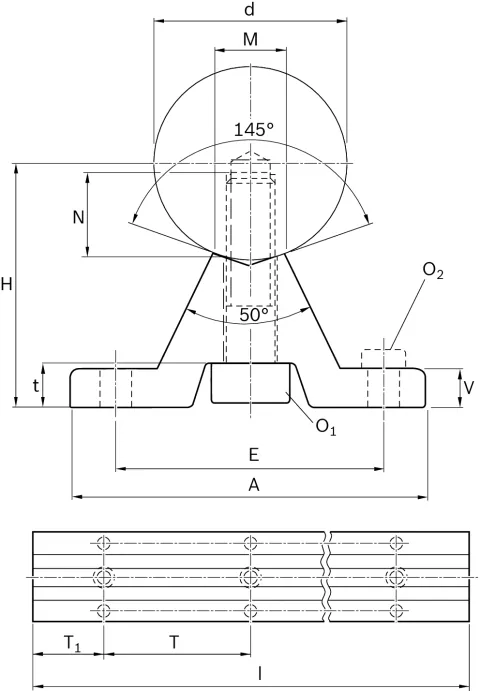

Shaft support rail with shaft mounted (heat-treated steel), 25-AFE1-H6
Shaft support rail with shaft mountedmade of heat-treated steelShaft diameter d = 25Tolerance = H6Shaft support rail: Aluminum, flange, less demanding height tolerance, bore spacing type 1
- Shaft support rail material: Aluminum
- Combined with linear sets, these shaft support rails can be used to create linear guides with very low height.
- Extra rigidity. Carefully adapting the support rail to the linear bushing size produces the ideal pressure angle for fitting the shaft which, along with the large fastening bolts, ensures extra rigidity.
- Highly affordable
- For use with open linear bushings
- For long guides or high loads where self-supporting shafts cannot be used due to shaft warping
- Unlimited length when using interconnecting shafts
- Support rails for various requirements
- Additional degrees of freedom in circumferential direction compared to profiled guide rails.
- For applications where other linear guides tend to warp due to imprecise substructures.
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
Payment methods:
Specifications
- Brand
- Bosch Rexroth
- Product ID
- R101002500
- Material of precision steel shafts
- Heat-treated steel Cf53
- Tolerance grade shaft
- h6
- Material shaft support rails
- Aluminum
- Mass m (kg/m) [kg/m]
- 5.4
