Bosch Rexroth R101004061

Name: R101004061
Brand: Bosch Rexroth
SKU: R101004061

R101004061

1 / 2

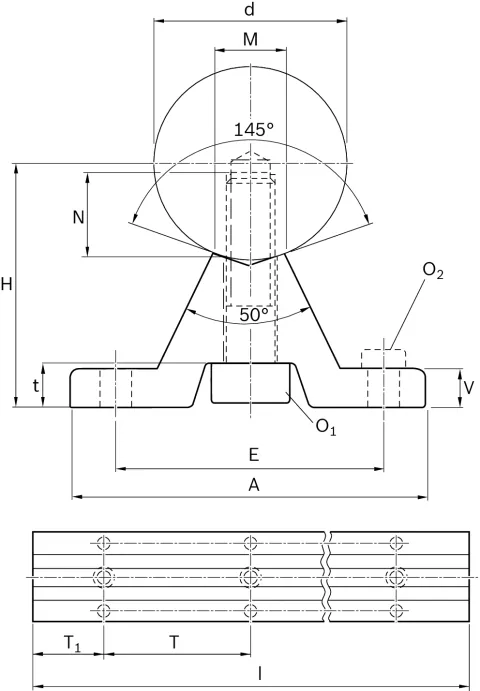

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

Shaft support rail with shaft mounted (hard chrome plated), 40-AFE1-H7 Shaft support rail with shaft mountedmade of heat-treated steel (hard chrome plated)Shaft diameter d = 40Tolerance = H7Shaft support rail: Aluminum, flange, less demanding height tolerance, bore spacing type 1 - Shaft support rail material: Aluminum - Combined with linear sets, these shaft support rails can be used to create linear guides with very low height. - Extra rigidity. Carefully adapting the support rail to the linear bushing size produces the ideal pressure angle for fitting the shaft which, along with the large fastening bolts, ensures extra rigidity. - Highly affordable - For use with open linear bushings - For long guides or high loads where self-supporting shafts cannot be used due to shaft warping - Unlimited length when using interconnecting shafts - Support rails for various requirements - Additional degrees of freedom in circumferential direction compared to profiled guide rails. - For applications where other linear guides tend to warp due to imprecise substructures.

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: R101004061
Material of precision steel shafts: Heat-treated steel Cf53 hard chrome plated
Tolerance grade shaft: h7
Material shaft support rails: Aluminum
Mass m (kg/m) [kg/m]: 12.6
