Bosch Rexroth R146520010

Name: R146520010
Brand: Bosch Rexroth
SKU: R146520010

R146520010

1 / 1

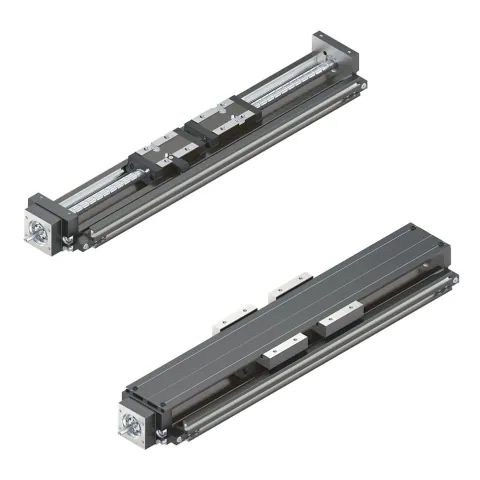

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

Precision module with ball screw assembly, size 50, generation 2 - Extremely stiff and highly precise linear motion system with the smallest dimensions - Machined reference edge on the frame facilitates rapid mounting and easy aligning - Flexible application possibilities thanks to two different accuracy classes: N=normal class and P=precision class - Four different lubrication versions: Standard lubrication (LSS), preserved (LPG), prepared for connection to central lubrication systems for liquid grease (LCF), lubrication with internationally available standard grease of clean room quality > 1000 according to fed. std. 209 (LSC) - Ball screw assembly sealed on both sides (low-friction seal) - Three sizes: PSK-050, -060, -090 - Smooth, compact and rigid precision steel profile with integrated Rexroth guideways and machined reference edge - Rexroth precision ball screw assembly in tolerance grade T7 with low-friction seal - One or two steel carriages, in standard length or long versions - Carriage with threads - Internal installation elements protected by optional cover plate

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: R146520010
Nominal size [mm]: PSK-050
Dynamic load capacity, guideway Cgw50 [N]: 18600.0
Dynamic load capacity guideway Cgw100 [N]: 14800.0
Maximum acceleration rate amax [m/s²]: 50.0
Note: Max. acceleration amax: The maximum value is dependent on the selected configuration.
