Bosch Rexroth R16517142Z
R16517142Z
1 / 3
Reference Image - Not actual item!
Reference Image - Not actual item!
Reference Image - Not actual item!
Product Description
Lifecycle Status:Successor:

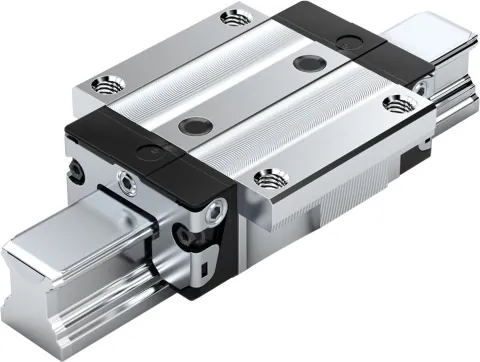

Ball runner block, FNS, size 30, steel CS, accuracy standard, low preload, without ball chain
The ball runner block is highly precise and characterized by the following product features:Size 30Format FNS: Width = flange, length = normal, height = standardRunner block body made of unalloyed steel CSPreload class C1: Low preloadAccuracy class N: StandardWithout ball chainWith initial lubrication and preservationRoller bearing grease Dynalub 510Without attachment element, left (front reference edge)Without attachment element, right (front reference edge)Straight lube connection loosely attached.Runner block body in standard versionOverall length of the runner block = 97.7 mmInterchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
- Area of application: For high rigidity requirements
- Excellent dynamic characteristics
- Significantly reduced frictional oscillations and low friction force level, particularly under external load
- Maximum precision
- Patented entry zone increases the travel accuracy up to a factor of six
- Attachments on the ball runner block can be mounted from above and below
- Lube fittings with metal threads on all sides
- End-face fastening thread for all attachments
- Integrated all-round sealing
- High torque load capacity
- Different preload classes
- High rigidity in all load directions – permits applications with just one runner block per rail
- Improved rigidity under lift-off and side loading condit...
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 9 pcs.In-StockUpdated at: 15-08-2026
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Are you a Supplier?
Join 750+ suppliers, sell to 3500+ verified buyers.
Specifications
- Brand
- Bosch Rexroth
- Product ID
- R16517142Z
- Version
- Ball rail system
- Nominal size [mm]
- 30
- Format
- FNS - flange, normal, standard height
- Model
- High-precision ball runner block
- Material (profiled rail systems)
- Carbon steel
