Eaton 000641

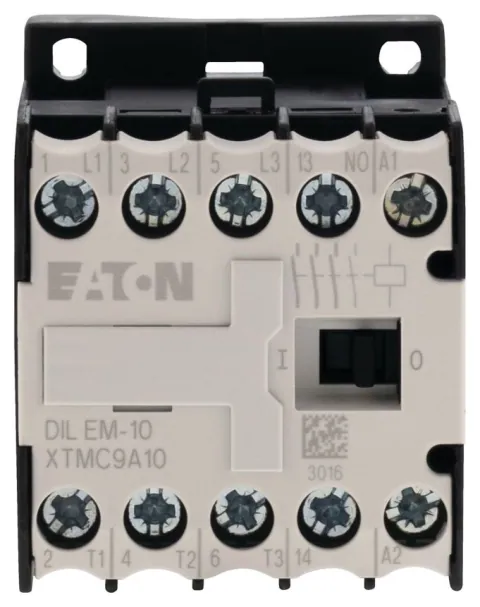

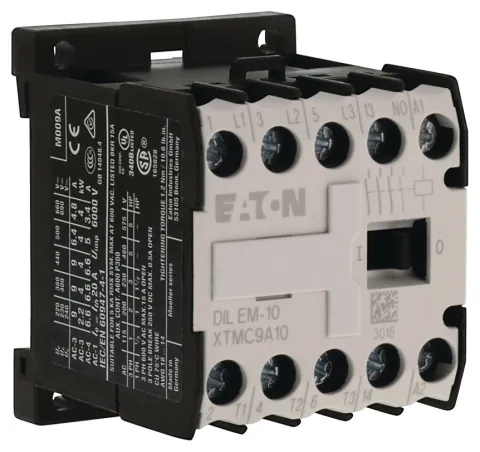

The DILEM-10(TVC200) Mini Contactor is an integral component designed for reliable control of motors and resistive loads. Operating at 200 V for 50Hz and 200-220 V for 60Hz, the device supports a three-pole configuration capable of handling up to 4 kW. Its screw terminal connections facilitate easy installation and maintenance.

This contactor meets critical standards such as IEC/EN 60947, ensuring compliance with international safety and performance guidelines. The rated operational current is 22 A at AC-1 for voltages of 380 V, 400 V, and 415 V, while it can effectively manage 6 A at AC-15 for lower voltage applications. It is also suitable for motors classified under efficiency class IE3.

The DILEM-10(TVC200) is equipped with one normally open auxiliary contact and operates efficiently within an ambient temperature range of -25 °C to 50 °C. Its robust design includes features for positive operating contacts and ensures protection against direct contact, adhering to EN 50274 standards.

Additional specifications include an arcing time of 12 ms at 690 V AC and a rated impulse withstand voltage of 6000 V AC. With a mechanical lifespan of 200,000 operations, it is designed for durability in demanding environments. The designation code for this product is DILEM-10(TVC200).
