Eaton 000964

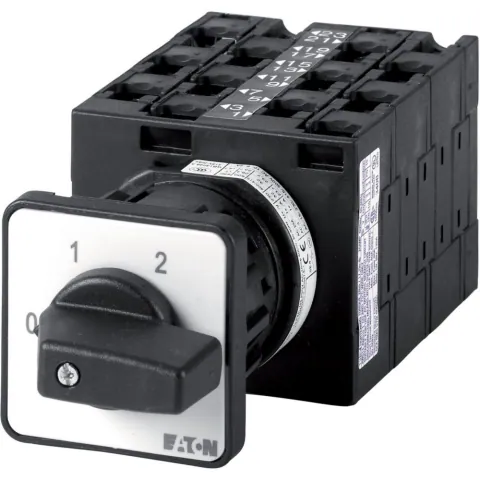

Reversing Multi-Speed Switch T3-6-15866/EZ
1 / 4
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Product Description
The Reversing Multi-Speed Switch model T3-6-15866/EZ is designed for versatile applications, accommodating a maximum current of 32 A. It includes 6 contact units with a total of 12 contacts, facilitating operations at a switching angle of 60 °. The device operates within a temperature range of -25 °C to +50 °C and is suitable for various motor configurations, including 1.5 HP at 115/120 V and up to 10 HP at 575/600 V.
Certification under IEC/EN 60947-3 and compliance with CSA and UL standards ensure reliability in industrial environments. The switch features a maintained 0 (Off) position and can be mounted as required, with terminal connections made via screw terminals. The design ensures a mechanical lifespan of 500,000 operations, enhancing the device's durability.
Notably, the switch meets stringent requirements for corrosion resistance and thermal stability, making it suitable for demanding applications. The NEMA 12 and IP65 ratings provide protection against dust and moisture ingress, while the control circuit reliability is quantified at 1 failure per 100,000 switching operations at 24 V DC.
This model is further characterized by its short-circuit protection rating of 35 A and a rated impulse withstand voltage of 6000 V AC, ensuring safety during operation. The Designation Code for this product is T3-6-15866/EZ.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Latvia, member since 2024, 20–49 employees- Availability:
- 0 pcs.On RequestUpdated at: 04-09-2026
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Eaton
- Product Name
- Eaton Moeller® series T3 Reversing multi-speed switch
- Catalog Number
- 000964
- Model Code
- T3-6-15866/EZ
- Certifications
- IEC/EN 60947-3 CSA UL Category Control No.: NLRV VDE 0660 IEC/EN 60947 CSA File No.: 012528 IEC/EN 60204 UL CSA Class No.: 3211-07 UL 60947-4-1 CSA-C22.2 No. 60947-4-1-14 CE CSA-C22.2 No. 94 UL File No.: E36332
- Catalog Notes
- Rated Short-time Withstand Current (Icw) for a time of 1 second
- Global Catalog
- 000964
