Eaton 003229

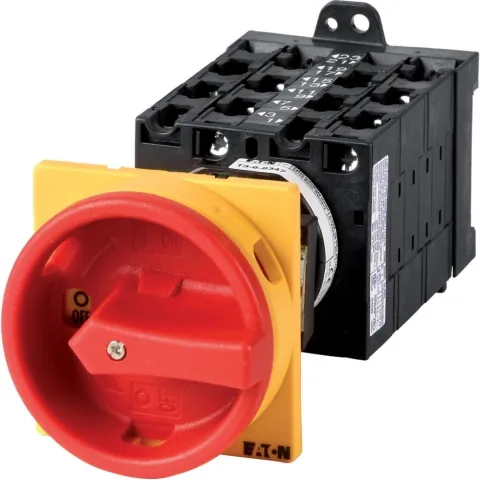

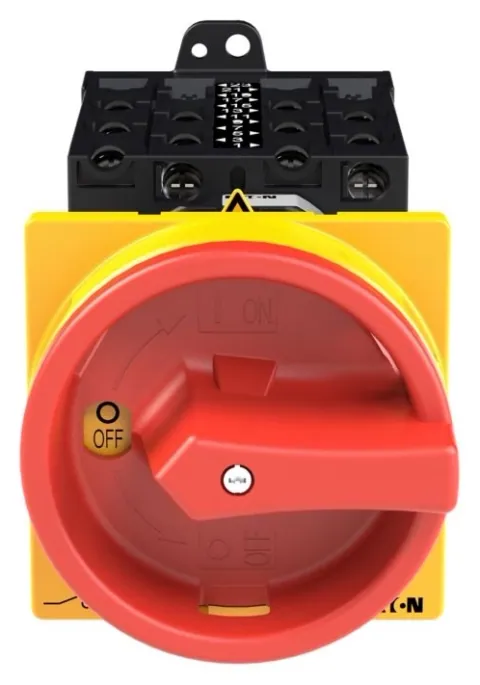

The T3 series main switch, model T3-6-15168/V/SVB, supports a rated operational power of up to 18.5 kW at 500 V and 22 kW at 690 V. This switch is designed for rear mounting and accommodates a total of six contact units within its nine-pole configuration, including two normally open and one normally closed contact. It incorporates an emergency switching off function, facilitated by a red rotary handle and a yellow locking ring.

With a maximum ambient operating temperature of 50 °C and a minimum of -25 °C, this device maintains operational integrity across a range of environmental conditions. The main switch has a degree of protection rated at IP65 on the front side, ensuring its suitability for harsh environments. Additionally, it is designed to operate at a frequency of 1200 operations per hour, with a mechanical lifespan of 500,000 operations.

According to the Designation Code T3-6-15168/V/SVB, the switch includes features that allow for interlocking and serves as a maintenance and service switch. The electrical connections utilize screw connections, and the device meets various international standards for safety and electromagnetic compatibility, ensuring reliable performance in industrial applications.
