Eaton 003230

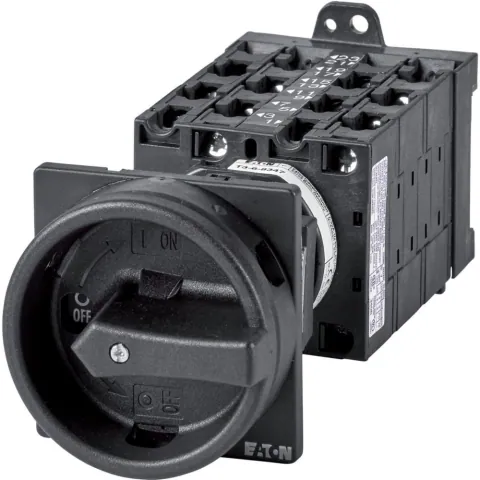

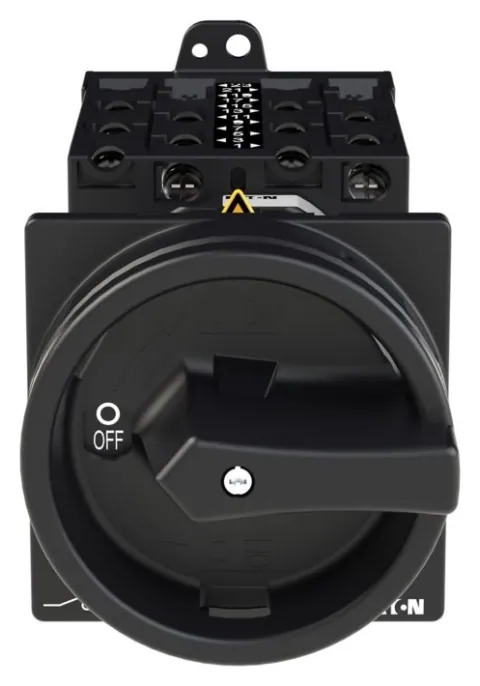

The Main Switch T3-6-15168/V/SVB-SW is designed for reliable operation in various applications. With a rated operational current of 32 A, it incorporates a total of six contact units configured in a 9-pole arrangement, comprising two normally open (N/O) contacts and one normally closed (N/C) contact. This device is equipped with a black rotary handle and locking ring, ensuring secure operation.

This unit is suitable for rear mounting and has a compact size, measuring 179 mm in depth, 65 mm in width, and 74 mm in height, weighing 0.383 kg. The switch is compliant with multiple certifications, including IEC/EN 60947 and UL standards, ensuring its adherence to stringent safety and performance requirements.

Notably, the switch features a rated short-time withstand current (Icw) of 650 A for one second, a rated impulse withstand voltage (Uimp) of 6000 V AC, and is designed to operate effectively within an ambient temperature range of -25 °C to 50 °C. The actuator type is a door coupling rotary drive, facilitating ease of access and control.

With a robust mechanical lifespan of 500,000 operations, this device is engineered to withstand frequent use. It is also interlockable, providing additional safety measures in critical applications. The designation code for this product is T3-6-15168/V/SVB-SW, which can be referenced for specific technical inquiries.
