Eaton 004204

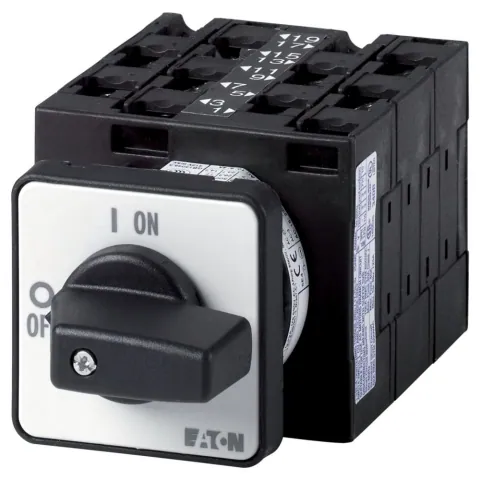

The Changeover Switch T3-5-89/E, with a rated current of 32 A, is designed for flush mounting and contains 5 contact units. Its configuration includes 9 contacts positioned at a 60° angle, with a maintained operation and a 0 (Off) position. The switch is suitable for various applications, including motor disconnects and branch circuits, adhering to strict safety and performance standards.

This device features a rated short-time withstand current (Icw) of 650 A for one second, ensuring reliable operation under load. It is constructed from durable plastic and operates effectively within an ambient temperature range of -25 °C to 50 °C. The unit is compliant with several international standards, including CE and UL, and includes a degree of protection rating of IP65/NEMA 12, providing reliable performance in harsh environments.

In terms of electrical specifications, the switch supports various operational currents across different voltage configurations, with a maximum rated operational voltage of 690 V. Auxiliary contact ratings and mechanical lifespan are optimized for extensive use, with a mechanical lifespan of 500,000 operations. The Designation Code for this switch is T3-5-89/E, integrating seamlessly into control systems that demand high reliability.
