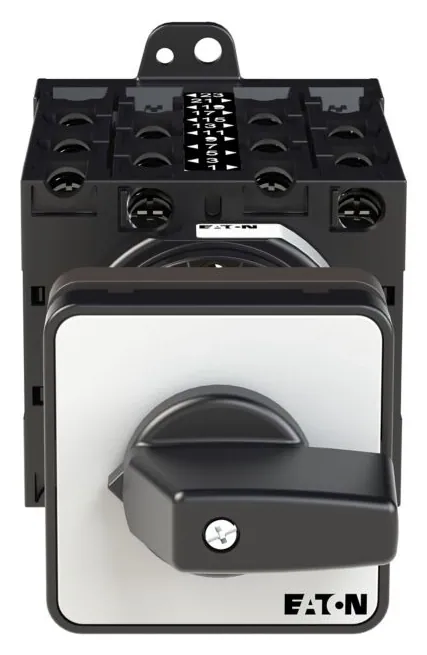

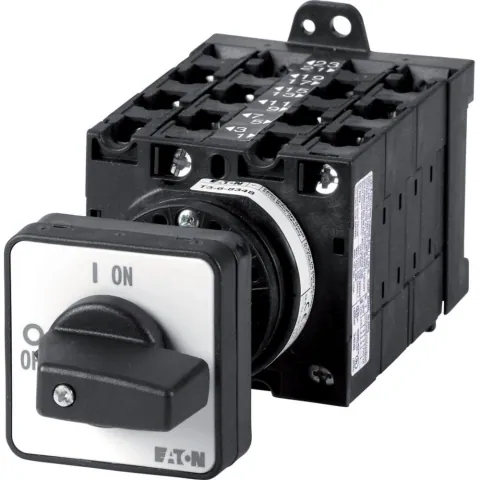

Eaton 004451

The Multi-speed switch model T3-6-8449/Z is designed for rear mounting applications and accommodates six contact units. With a rated operational current of 32 A, it supports both single-phase and three-phase motor power configurations, including up to 10 HP at 575/600 V. The switch features 11 contacts and operates at a maximum frequency of 1200 operations per hour, making it suitable for various industrial control tasks.

In terms of specifications, the device meets a range of standards including IEC/EN 60947 and UL 60947-4-1, ensuring compliance with international safety and operational guidelines. The degree of protection is rated at IP65, indicating suitability for environments requiring dust and water resistance. The actuator has a maintained function and includes a prominent 0 (Off) position, and its mechanical lifespan is rated at 500,000 operations.

For installation, the electrical connections utilize screw terminals, and the device can operate within a temperature range of -25 °C to 50 °C. The switch's design number is 8449, facilitating identification and compatibility within control systems.
