Eaton 005574

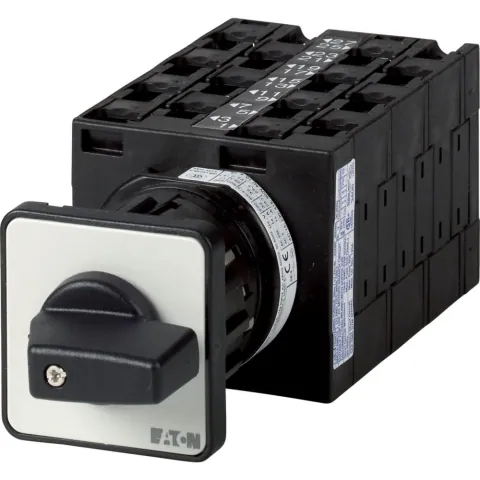

The Changeover Switch model T3-7-8363/EZ is engineered to handle a rated operational current of 32 A at AC-3, with a maximum voltage rating of 690 V. This switch features a center mounting design and is equipped with 7 contact units, allowing for a total of 14 contacts. The device operates with a maintained function that includes an off position (0), providing versatility for various applications.

With a switching angle of 60°, the device ensures precise control operations. The electrical connection utilizes screw terminals, accommodating a terminal capacity of flexible conductors up to 4 mm². The unit is rated for a short-time withstand current (Icw) of 650 A for 1 second, ensuring reliability under load conditions.

Designed to meet stringent safety standards, the switch complies with multiple certifications including CE and CSA, ensuring safe isolation up to 440 V AC between contacts. The enclosure is constructed from durable plastic and offers a protection degree of IP65, making it suitable for various environmental conditions.

For operational efficiency, the device supports an operating frequency of 1200 operations per hour and is rated for a mechanical lifespan of 500,000 operations. The ambient operating temperature range is from -25 °C to a maximum of 50 °C, which allows for flexible installation in different settings.

Overall, the Changeover Switch T3-7-8363/EZ is a critical component for applications requiring reliable switching and control in industrial environments.
