Eaton 008828

Name: T3 Main Switch, 32 A, 3 Pole, 3 Contact Units, Emergency Stop Function
Brand: Eaton
SKU: 008828

T3 Main Switch, 32 A, 3 Pole, 3 Contact Units, Emergency Stop Function

1 / 4

Manufacturer catalogue image

Product Description

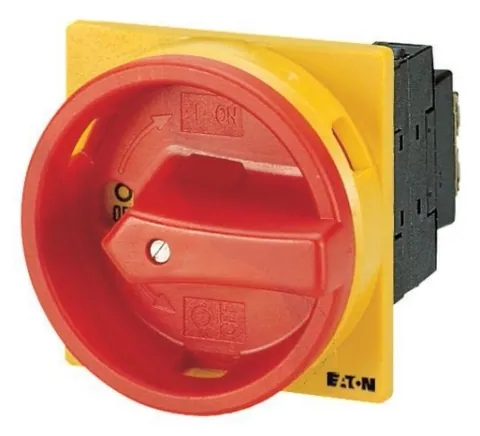

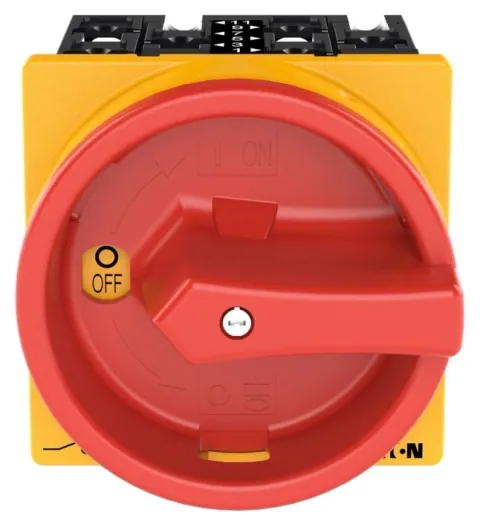

The T3 Main Switch, model T3-3-15259/EA/SVB, is a crucial component for emergency stop functionality, rated at 32 A. It incorporates three contact units configured as a three-pole switch, with two normally open contacts. The device is equipped with a red rotary handle and a yellow locking ring, allowing for clear emergency operation and secure locking.

This switch is suitable for flush mounting and operates effectively under various ambient conditions, with a maximum operating temperature of 50 °C and a minimum of -25 °C. It has a rated short-time withstand current (Icw) of 650 A for one second, ensuring reliability in critical applications. Additionally, it meets various international standards for safety and electromagnetic compatibility, adhering to IEC/EN 60947-3 and UL specifications.

The T3 switch is designed for installation as a maintenance or service switch and can function as a motor disconnect device. It is rated for operational power up to 22 kW at 690 V and supports a variety of motor power ratings across different voltages, making it versatile in industrial applications.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Latvia, member since 2024, 20–49 employees
Availability:: 0 pcs.
On Request
Updated at: 04-09-2026
Warranty:: 12 months
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Eaton
Product Name: Eaton Moeller® series T3 Main switch
Catalog Number: 008828
Model Code: T3-3-15259/EA/SVB
Certifications: CSA-C22.2 No. 60947-4-1-14 UL File No.: E36332 CSA File No.: 012528 IEC/EN 60947-3 UL Category Control No.: NLRV IEC/EN 60204 UL 60947-4-1 CSA CSA-C22.2 No. 94 UL CE IEC/EN 60947 CSA Class No.: 3211-05 VDE 0660
Catalog Notes: Rated Short-time Withstand Current (Icw) for a time of 1 second
Global Catalog: 008828
