Eaton 009559

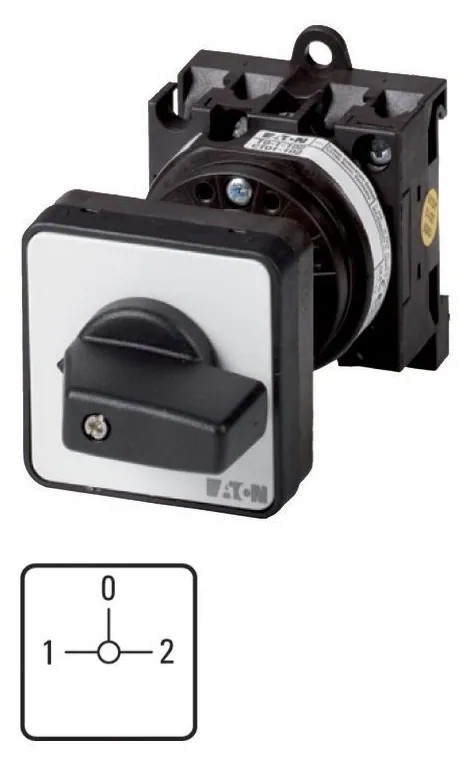

The T0-1-8218/Z Changeover Switch operates at a maximum current of 20 A and is designed for rear mounting. It features a single contact unit with two maintained contacts positioned at a 90° angle, including an off position designated as 0 (Off), with a switching configuration of 1-0-2 as indicated in the Design number 8218.

This device has a robust operational temperature range, functioning between -25 °C and 50 °C, and is suitable for various applications including motor disconnects. Its enclosure is constructed from durable plastic, providing a degree of protection rated at NEMA 1, IP65, and NEMA 12. The device is equipped with a black thumb grip for straightforward operation and can accommodate screw connections for electrical integration.

Notably, the switch supports an operational frequency of up to 1200 operations per hour and has a mechanical lifespan of 400,000 operations. With a rated impulse withstand voltage of 6000 V AC and a short-circuit current rating of 10 kA, the switch meets rigorous electrical standards, ensuring reliable performance in demanding environments. The product also adheres to several international certifications, including IEC/EN 60947 and UL 60947-4-1, ensuring compliance with industry safety requirements. The terminal capacity accommodates various conductor sizes, facilitating versatile installation options.
