Eaton 014049

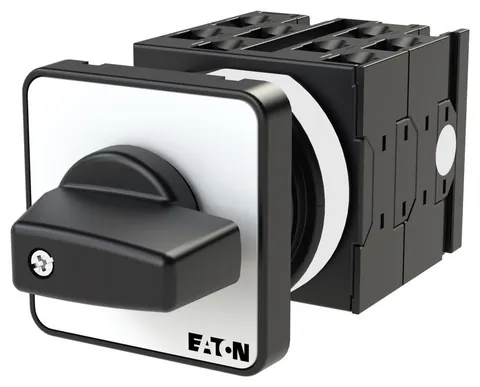

The T0-4-8450/E Multi-speed switch is engineered for performance with a rated operational current of 20 A. It features a maintained actuator function with an off position, facilitating user control over two distinct speed settings, denoted as 0-1-2. The design incorporates four contact units, accommodating up to seven contacts with a switching angle of 60 °.

Constructed from durable plastic, this switch supports a variety of mounting orientations and is compliant with multiple international standards for safety and performance. The device offers a degree of protection rated at IP65, making it suitable for demanding environments. The ambient temperature range for operation extends from -25 °C to a maximum of 50 °C, and it accommodates diverse applications, including branch circuits and motor disconnects.

Notably, the switch is rated for short-time withstand current of 320 A for one second, ensuring resilience during transient conditions. With a mechanical lifespan of up to 400,000 operations, the T0-4-8450/E guarantees reliability and robust performance in industrial settings. Compliance with several certifications, including CSA and UL standards, underscores its suitability in various control applications.
