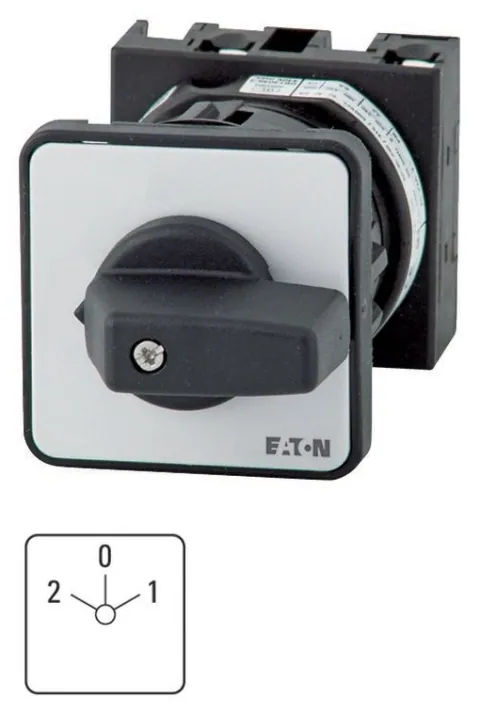

Eaton 018947

The T3-3-2/EZ Reversing Switch is designed for reliable performance in various control applications. With a current rating of 32 A and a switching angle of 45°, this switch includes three contact units that are maintained and configured for an off position.

Constructed from durable plastic, the device complies with IEC/EN 60947-3 and has a degree of protection rated at IP65 and NEMA 12, ensuring its suitability for demanding environments. The operational temperature range is between -25 °C and 50 °C, allowing for flexibility in installation scenarios.

This reversing switch has a mechanical lifespan of 500,000 operations and supports various motor power ratings up to 10 HP, accommodating both single-phase and three-phase applications. It is equipped with a black thumb grip and front plate for ease of operation.

For safety and reliability, the switch features a rated impulse withstand voltage of 6000 V AC and complies with electromagnetic compatibility standards, ensuring it meets stringent operational requirements. The control circuit reliability is statistically determined at one failure per 100,000 switching operations at 24 V DC and 10 mA.
