Eaton 051773

Name: DILER Contactor Relay DILER-22(42V50HZ,48V60HZ)
Brand: Eaton
SKU: 051773

DILER Contactor Relay DILER-22(42V50HZ,48V60HZ)

1 / 3

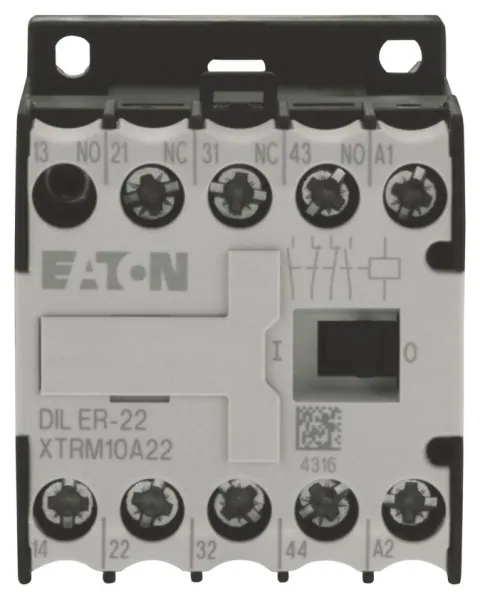

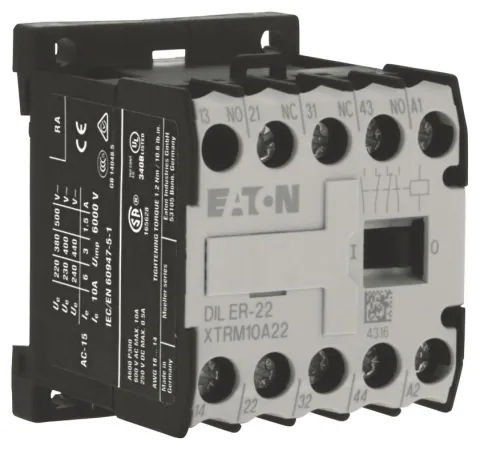

Manufacturer catalogue image

Product Description

The DILER Contactor Relay, model DILER-22(42V50HZ,48V60HZ), operates at a rated control supply voltage of 42 V for 50 Hz and 48 V for 60 Hz. It is equipped with 2 normally open (N/O) and 2 normally closed (N/C) contacts, allowing for versatile control applications. The device supports screw terminals for reliable connections and is suitable for AC operation.

This relay adheres to various safety and performance standards, including CSA Class No.: 3211-03 and UL VDE 0660. It features positive operating contacts compliant with EN 60947-5-1, ensuring dependable performance. The ambient operating temperature ranges from -25 °C to 50 °C, providing flexibility in diverse environments.

Designed with a high switching capacity, it can handle up to 10 A at 220 V DC. The mechanical lifespan is rated at 10 million operations, supporting extensive use in industrial applications. Furthermore, this relay is rated IP20, providing protection against direct contact, and is suitable for mounting on DIN rails or via screws.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Netherlands, member since 2021
Availability:: 0 pcs.
On Request
Updated at: 05-09-2026
Warranty:: 12 months
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Eaton
Product Name: Eaton Moeller® series DILER Control relay
Catalog Number: 051773
Model Code: DILER-22(42V50HZ,48V60HZ)
Certifications: CSA Class No.: 3211-03 UL VDE 0660 UL Category Control No.: NKCR CE CSA File No.: 012528 CSA-C22.2 No. 14-05 CSA IEC/EN 60947 EN 60947-5-1 IEC/EN 60947-4-1 UL 508 UL File No.: E29184
Global Catalog: 051773
Product Type: Control relay
