Festo CPV14-M1H-2X3-GLS-1/8

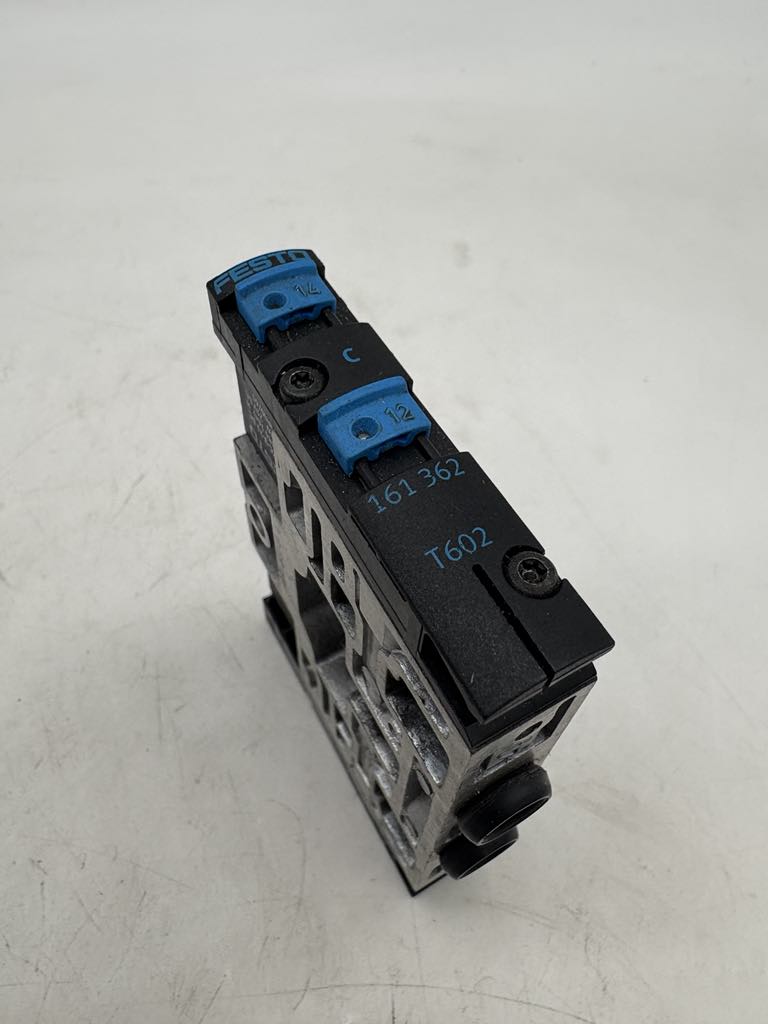

The Air Solenoid Valve CPV14-M1H-2X3-GLS-1/8 by Festo is designed for precise and reliable pneumatic control in industrial automation systems. This valve features a 2x3/2 closed, monostable function, making it ideal for applications requiring quick and accurate switching. With a valve size of 14 mm and a normal nominal flow rate of 800 l/min, it ensures efficient operation in various settings.

Engineered with a piston gate valve structural design and a pneumatic spring reset method, this valve guarantees durability and consistent performance. The valve operates at an operating voltage of 24V DC and supports an operating pressure range from -0.09 MPa to 1 MPa, making it versatile for different pneumatic systems.

Its IP65 protection rating ensures resistance to dust and water, while the soft sealing principle and non-reversible flow direction enhance its reliability. The valve is designed for any mounting position and features both detenting and non-detenting manual override options for flexibility in control.

Compliance with ISO 8573-1:2010 [7:4:4] standards for compressed air quality, along with vibration and shock resistance as per FN 942017-4 and EN 60068-2-6/27, ensures robust performance in demanding environments. The valve is also RoHS-compliant and features materials such as die-cast aluminum, brass, POM, PPS, and steel for enhanced durability.
