Harting 09061482901

Name: Male Connector with Wave Soldering Termination
Brand: Harting
SKU: 09061482901

Male Connector with Wave Soldering Termination

1 / 2

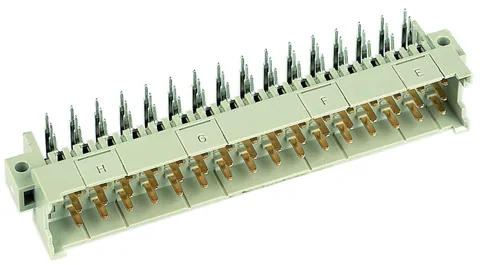

Manufacturer catalogue image

Product Description

The Male Connector with Wave Soldering Termination is a high-performance connector designed for robust electrical connections. It features a copper alloy construction, ensuring durability and resistance to corrosion. The termination side of the connector is plated with Sn over Ni, enhancing its conductivity and longevity. This connector adheres to the IEC 60603-2 standard for performance level 1, ensuring reliable electrical connections.

The connector also incorporates a coding system that includes hole coding, shroud coding, and D20 coding. This allows for easy identification and connection of compatible parts. The connector is available with a fixing flange, providing secure mounting on PCBs. It is made from thermoplastic resin, glass-fibre filled, and is finished in RAL 7032 (pebble grey).

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — United States, member since 2023
Availability:: 6 pcs.
In-Stock
Updated at: 14-09-2026
Warranty:: 12 months
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Harting
Contact rows: 3
Contact spacing (termination side): 2.54 mm || 5.08 mm
Contact spacing (mating side): 3.81 mm || 5.08 mm
Rated current: Rated current measured at 20 °C, see derating curve for details
Clearance distance: ≥ 1.6 mm
Creepage distance: ≥ 3 mm
