Harting 09150013023

Name: Crimp Termination Male Connector, 1 Contact, Shielded, 0.14...4 mm² Cross-Section, 16 A Rated Current
Brand: Harting
SKU: 09150013023

Crimp Termination Male Connector, 1 Contact, Shielded, 0.14...4 mm² Cross-Section, 16 A Rated Current

1 / 1

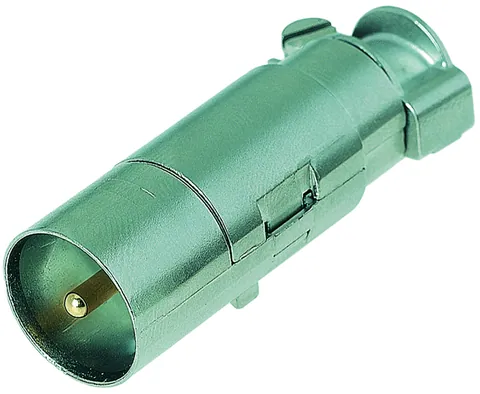

Manufacturer catalogue image

Product Description

The male connector is designed for crimp termination and includes 1 contact along with shielding. It supports a conductor cross-section ranging from 0.14 to 4 mm² and has a rated current of 16 A. The connector is constructed from polycarbonate (PC) in RAL 7032 (pebble grey) for optimal durability.

In terms of technical specifications, the rated voltage is 50 V with a rated impulse voltage of 0.8 kV. It is rated for a pollution degree of 3 and exhibits a contact resistance of shielding at ≤ 100 mΩ. The impedance is 50 Ω with a limiting temperature range of -40 to +85 °C and can endure ≥ 500 mating cycles.

The shielding material is made from nickel-plated zinc die-cast, ensuring protection and compliance with various standards, including EN 60664-1 and IEC 61984. This connector is RoHS compliant and adheres to ELV standards, with no substances listed under REACH Annexes XIV or XVII.

For assembly, crimp contacts must be ordered separately. The product has a net weight of 25.08 g and is classified under the category of inserts, specifically designed for use with Han connectors.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Latvia, member since 2023, 10–19 employees
Availability:: 1 pc.
On Request
Updated at: 04-09-2026
Warranty:: 12 months
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing
