Harting 09310062701

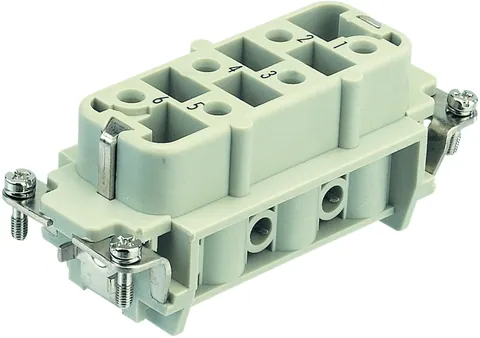

Polycarbonate Female Screw Termination Inserts, Rated Current 35A, Size 16B, Contacts 6
1 / 2
Manufacturer catalogue image
Product Description
Introducing our Polycarbonate Female Screw Termination Inserts, designed for reliable electrical connections. These inserts are rated at a current of 35A and come in a size of 16B, ensuring optimal performance. They feature 6 contacts, providing ample space for multiple conductors.
Constructed from high-quality Polycarbonate (PC) material, these inserts offer durability and resistance to environmental factors. The RAL 7032 pebble grey finish adds a touch of elegance while maintaining a professional appearance.
The conductor cross-section ranges from 1.5 mm² to 6 mm², accommodating various conductor sizes. Made from copper alloy and silver plated, these inserts offer excellent conductivity and corrosion resistance.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — United States, member since 2023- Availability:
- 6 pcs.In-StockUpdated at: 05-09-2026
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Harting
- Conductor cross-section
- 1.5 ... 6 mm²
- Rated current
- 35 A
- Rated voltage conductor-earth
- 400 V
- Rated voltage conductor-conductor
- 690 V
- Rated impulse voltage
- 6 kV
- Pollution degree
- 3
