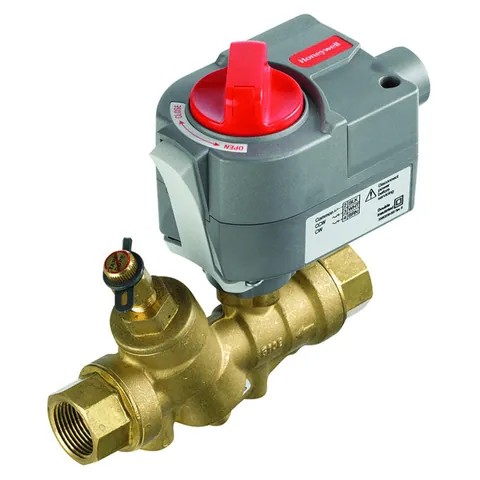

Honeywell
MVN613A0000
Rotary Actuators, ELECTRIC ACTUATOR - FLOATING ON/OFF (FAIL IN PLACE) - STANDARD PROFILE - 24 VAC
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
£39.04
1
Payment methods:
A total of 14 Parts In-Stock from 2 Distributors
Product Conditions:
Additional Information
- Part Number
- MVN613A0000
Specifications
- Valve Compatibility
- VBN and VRN- up to 1.25 inch valve size
- Supply Voltage Frequency
- 50 Hz ; 60 Hz
- Spring Return
- No
- Shaft Mounting
- Square
- Runtime
- 90 s
- Regulatory Approvals
- UL/cU ; UL60730
- Overall Width
- 4.5625 in ; 116 mm
- Overall Height
- 3.8125 in ; 98 mm
- Overall Depth
- 2.1875 in ; 71 mm
- Number of End Switches
- 0
- Minimum Shipping & Storage Temperature
- -40 °F ; -40 °C
- Minimum Operating Humidity
- 5 % non-condensing
- Minimum Operating Ambient Temperature
- -4 °F ; -20 °C
- Maximum Shipping & Storage Temperature
- 176 °F ; 80 °C
- Maximum Operating Humidity
- 95 % non-condensing
- Maximum Operating Ambient Temperature
- 131 °F ; 55 °C
- Manual Override Included
- Yes
- IP Rating
- IP40
- Housing Material
- Plenum rated plastic
- For Use With
- VBN and VRN valve up to 1-1/4 inch
- Fire & Smoke Rating
- No
- Feedback Included
- No
- Features
- Position indicator
- Driving Power Consumption
- 1.5 VA
- Driving Noise Rating
- 35 (db(A) @ 1m)
- Damper Compatibility
- No
- Connection Type
- Screw terminals
- Compatible with External Auxiliary Switches
- No
- Built In Rotation Limiter
- No
- Angle of Rotation
- 90 °
- Torque
- 27 in·lb ; 3 Nm
- Supply Voltage
- 24 V AC ; 24 V DC
- Power Loss Action
- Fail-in-place
- Mounting Style
- MVN Standard Profile
- Control Signal
- Floating ; Two-Position (SPDT)
- Application
- HVAC
Documents
Data Sheet
