IFM AL2305

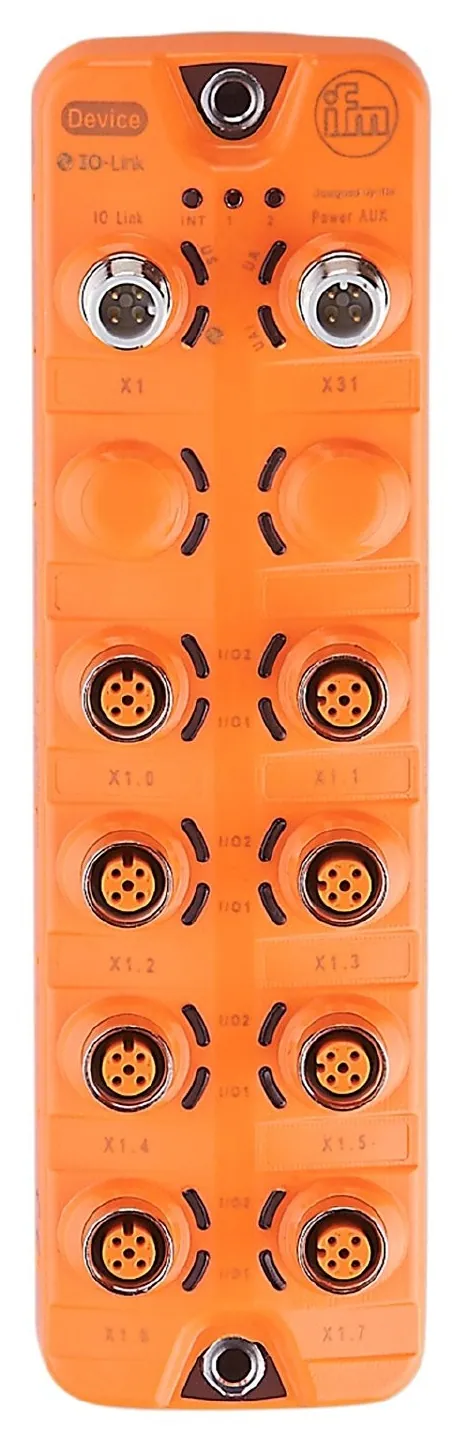

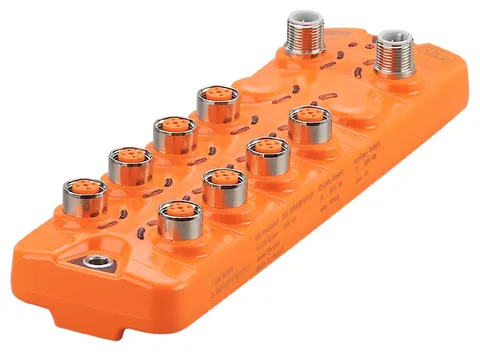

This IO-Link input/output module, designated as IOL MOD SL 8XMP/DX E M12 IP67, offers 8 configurable I/O ports, allowing for versatile application in industrial automation. It supports a performance output current of up to 1.8 A, ensuring robust performance across various functions.

Electrical specifications include an operating voltage range of 18 to 30 DC, with a maximum current consumption of 100 mA. The device is designed with electrical separation between the auxiliary voltage and IO-Link, enhancing safety and functionality. The total number of configurable inputs and outputs reaches 16, including 16 digital inputs and 8 analogue inputs, which can handle both current (4...20 mA) and voltage (0...10 V) inputs with a resolution of 16 bits.

In terms of output capabilities, the module supports 16 digital outputs with a maximum load of 1800 mA per output, and a total maximum current load of 3.6 A. Short-circuit protection is integrated to safeguard against potential faults. The communication interface is based on IO-Link technology, operating at COM3 (230.4 kBaud) with a revision of 1.1, complying with the SDCI standard IEC 61131-9.

Operating conditions are suitable for a wide range of environments, with an ambient temperature range of -25 to 60 °C and a storage temperature of -25 to 70 °C. The module is rated IP 67, ensuring protection against dust and water ingress. With a mechanical weight of 396.9 g and dimensions of 26 x 59.3 x 208 mm, it is constructed from durable...
