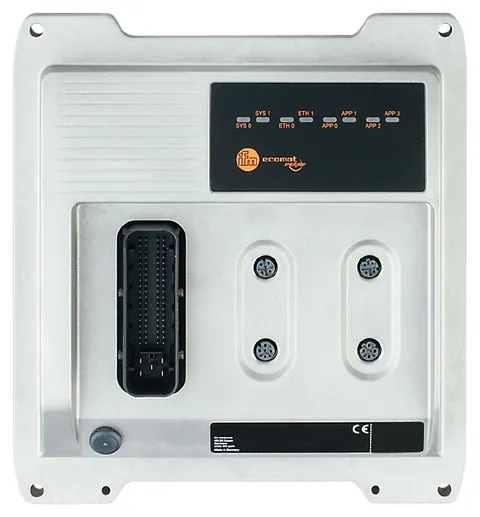

IFM CR0709

The programmable controller is equipped with a powerful 32-bit triple core processor, designed specifically for mobile machinery applications. It offers a significant application memory capacity and supports a total of 60 inputs and outputs, including 32 digital inputs, 28 outputs, and 16 analogue inputs.

Communication capabilities are enhanced with high-performance CAN and Ethernet interfaces, facilitating diverse communication tasks. The controller adheres to the IEC 61131-3 standard and is programmable using CODESYS 3.5, ensuring versatility in programming and application.

With a wide operating voltage range of 8 to 32 V DC, the device can withstand harsh operating conditions, operating effectively in temperatures from -40 to 85 °C and up to 3000 meters above sea level. The device's protection ratings of IP 65 and IP 67 ensure reliable performance in challenging environments, particularly with connectors that are individually sealed.

For the electrical interface, it includes multiple connection types such as Ethernet, CAN, and RS232, and features robust diagnostic and monitoring functions for its inputs and outputs. This includes current monitoring and protective circuitry for inductive loads, enhancing operational safety and reliability. The Designation Code for this product is ecomatController/60/Std.
