IFM CR1143

The programmable graphic display is designed for controlling mobile machines. With a modern 64-bit architecture, it supports a touch screen interface and offers a high-performance CAN communication capability, suitable for a variety of applications.

It is freely programmable according to IEC 61131-3 standards using CODESYS 3.5. This device operates within a voltage range of 8 to 32 V DC, with nominal values at 12/24 V. Current consumption is less than 333 mA at 24 V DC, ensuring efficient power usage.

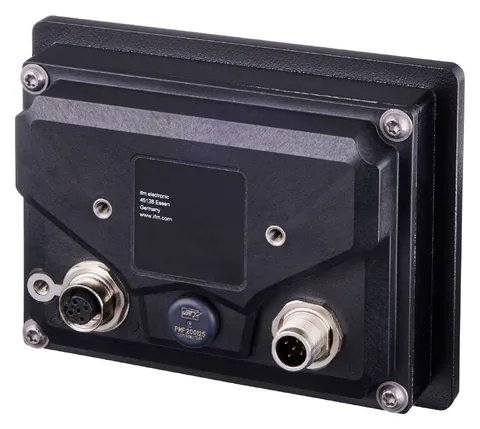

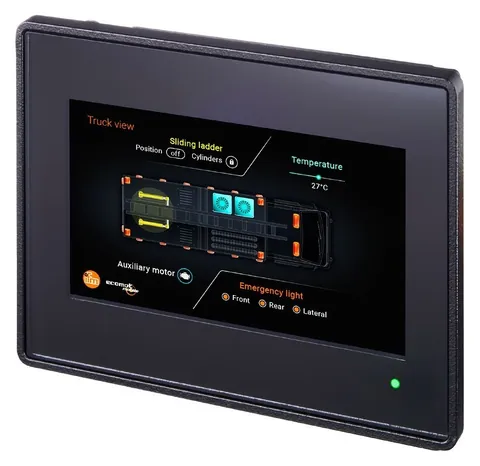

The display features a resolution of 800 x 480 pixels and a brightness of 1000 cd/m², adjustable for optimal visibility. The unit is housed in a durable diecast aluminum casing with a glass display that is both anti-reflective and hardened, enhancing its suitability for industrial environments.

Operating conditions allow for a wide ambient temperature range from -30 to 65 °C, while storage conditions extend from -30 to 85 °C. Additionally, the display is rated IP 65/IP 67 for protection against dust and water ingress, making it ideal for wet environments.

This device contains a single digital input, non-configurable, and supports interfaces such as CAN and USB. The embedded Linux operating system ensures reliable performance in various industrial applications. The designation code for this model is ecomatDisplay/4.3"/TOUCH/U.
