IFM LMT102

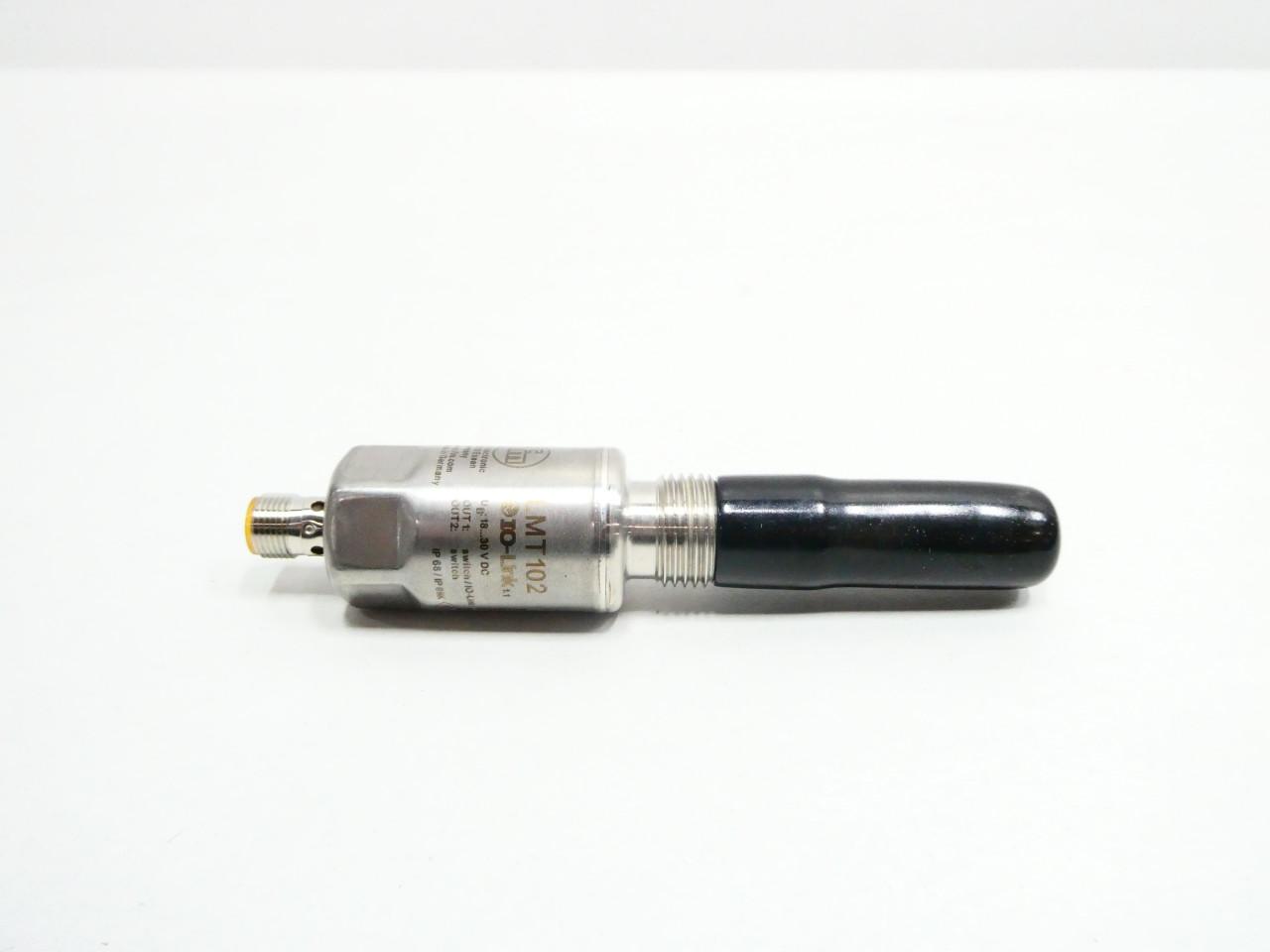

IFM Electronic Level Sensor LMT102
1 / 2
Manufacturer catalogue image
Product Description
The IFM Electronic Level Sensor LMT102 is designed for reliable level control in tanks and containers. Its hygienic design meets the stringent requirements of the food industry, making it suitable for both liquid and viscous substances as well as bulk materials.
Key Features:
Reliable detection of various media through parameterizable switching outputs
Effective elimination of deposits or foam
Gold-plated contacts for enhanced durability
Process connection with G 1/2 sealing cone thread
Probe length of 38 mm
Operating temperature range for oil and water: -20...100 °C
Short-term temperature resistance up to 150 °C
IP68 and IP69K protection
IO-Link communication interface
Compliance with EMC standards: DIN EN 61000-6-2, DIN EN 61000-6-4, DIN EN 61000-6-3
Applications:
Ideal for use in the food industry for monitoring levels of liquids, viscous substances, and bulk materials. The sensor's ability to reliably detect different media and eliminate deposits or foam makes it perfect for ensuring consistent and accurate level control in various industrial processes.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — United States, member since 2022, 50–99 employees- Availability:
- 1 pc.In-StockUpdated at: 05-09-2026
- Warranty:
- 2 months
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- IFM
- Supply Voltage
- 18...30 DC
- Current Consumption
- < 50 mA
- Protection Class
- III
- Reverse Polarity Protection
- Yes
- Total Number of Outputs
- 2
- Output signal
- switching signal; IO-Link
