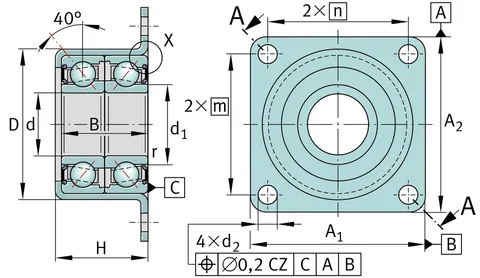

INA ZKLR1547-2RS

The ZKLR1547-2RS Flanged Housing Unit is a high-performance angular contact ball bearing unit designed for double direction load applications. This unit features lip seals on both sides, ensuring optimal protection against contaminants and extending the bearing's operational life. The flanged housing design allows for secure and easy screw mounting, making it ideal for various industrial applications.

Engineered for precision and durability, the ZKLR1547-2RS offers significant benefits including high load ratings and robust construction. The bearing unit supports both radial and axial loads, with a basic dynamic load rating of 16,700 N (radial) and 16,400 N (axial), and a basic static load rating of 10,700 N (radial) and 22,400 N (axial). The unit's friction torque is minimized to 0.2 Nm, ensuring smooth and efficient operation.

Manufactured to stringent quality standards, this bearing unit is suitable for demanding environments where reliability and performance are critical. The compact design, with a bore diameter of 15 mm and an outside diameter of 38.45 mm, makes it versatile for integration into various systems. The inner ring width is 22 mm, providing a stable and secure fit.

Applications for the ZKLR1547-2RS include machinery where precise alignment and load handling are essential. The unit's high rigidity (200 N/µm axial) and low mass moment of inertia (0.0178 kg*cm²) contribute to its exceptional performance in dynamic conditions.
