Lika C80

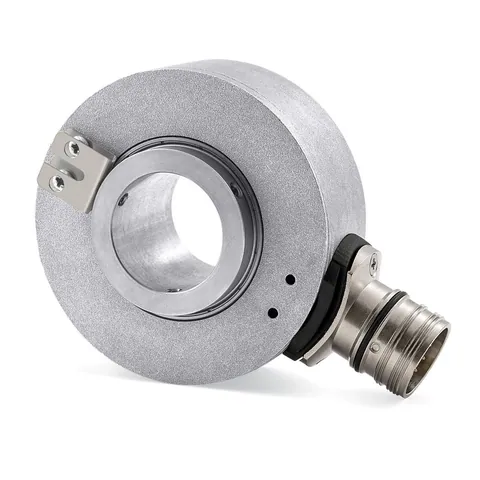

The Lika C80 ROTAPULS Incremental Encoder is engineered for high-precision feedback in large motor applications. Its precise optical sensing and very flat design make it ideal for space-constrained environments. The encoder features a through hollow shaft accommodating diameters up to Ø 30 mm, ensuring versatile integration. Constructed with a robust die-cast aluminum housing, it offers IP65 protection for reliable operation in harsh industrial conditions.

The C80 encoder supports multiple output circuits including Push-Pull, Line Driver, and Universal circuits, with resolutions up to 4096 PPR. It is designed to withstand axial and radial shaft loads up to 30 N and operates at speeds up to 6000 rpm. The encoder is protected against polarity inversion and short-circuits, complying with EN 61000-4-2 and EN 61000-4-4 standards for electromagnetic immunity.

Applications include motor feedback, automation systems, and other industrial environments requiring precise motion control. The encoder is available with various connection options, including M23 12-pin plugs and cable outputs, ensuring flexible installation. Optional accessories such as reducing sleeves and cordsets further enhance its adaptability.
