Description

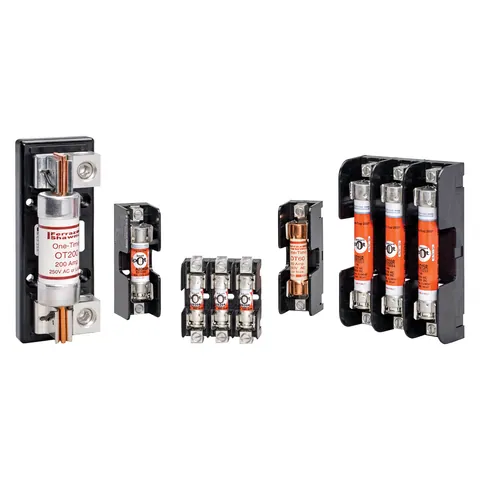

Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tinplated copper, with a choice of spring reinforced or nonspring reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced.- Country of Origin
- MX
- Part Number
- 20323
- UPC
- 782001757540
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
1
Payment methods:
Specifications
- Frequency Hz
- 50/60 Hz
- Max Operating Temp
- 80 °C
- Max Storage Temp
- 80 °C
- Min Storage Temp
- -25 °C
- Short Circuit Current Rating Sccr
- 50 kA
- Ampere Rating
- 30 A
- Max Fuse Rating
- 30 A
- Rated Voltage Ac Ul
- 250 V
- Rated Voltage Dc Ul
- 250 V
- Torque Rating
- 20 lb-in
- Country Of Origin
- MX
- Product Line
- Class H/K 250V Fuseholders - Class H, K
- Body Insulating Material
- GFPC
- Installation Mounting
- Direct Screw Mount
- Number Of Poles
- 3-pole
- Fuse Installation Method
- Clip-in
- Wire Connections
- Pressure Plate
