Mersen 21007
Fuse Bases 250V 100A Class H/K 2-pole Tin-Plate CU Box with Reinforced Clip
1 / 1

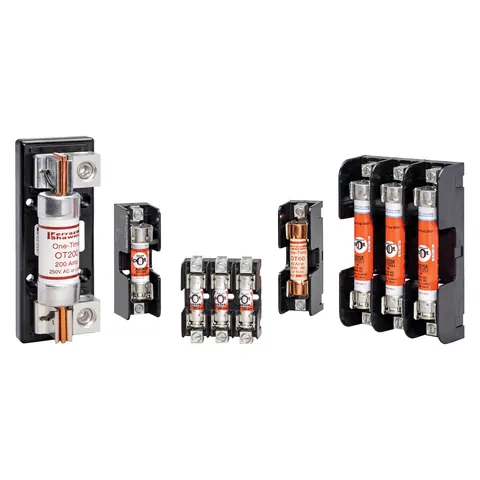

Manufacturer catalogue image
Product Description
The Class H, K, and R fuse blocks are compatible with all Class H, K, and R power fuses rated for 250 and 600V. These blocks support various connection types, including screw, pressure plate, box, and special order stud connectors, suitable for both stranded and solid copper or aluminum wires.
Insulators are constructed from molded glass-filled polycarbonate (GFPC) or phenolic materials, exhibiting verified dielectric strength exceeding 2500V. The 100A fuse blocks include unique adder blocks that can be easily snapped onto 1-, 2-, or 3-pole configurations, allowing the creation of multipole segmented blocks as needed.
All clips are manufactured from high conductivity tin-plated copper, with options for spring reinforced or non-spring reinforced clips available in 30A and 60A configurations. For 100A and higher, only spring reinforced clips are utilized. This product is designed for direct screw mounting and accommodates a wire range of 2/0-#12.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
- Trusted supplier — United Kingdom, member since 2026, 20–49 employees
- Availability:
- 3 pcs.In-StockUpdated at: 07-11-2025
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Mersen
- Frequency Hz
- 50/60 Hz
- Max Operating Temp
- 80 °C
- Max Storage Temp
- 80 °C
- Min Storage Temp
- -25 °C
- Short Circuit Current Rating Sccr
- 50 kA
- Ampere Rating
- 100 A
