Mersen F300224

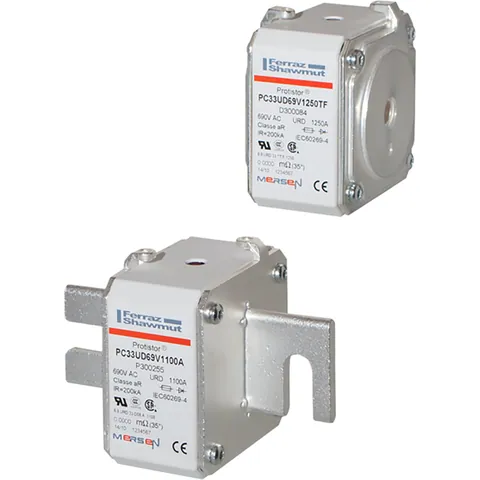

SB aR French Slotted Blade Fuse, Size 33, 690VAC IEC, 1000A
Product Description
The SB aR fuse-link is designed for high-performance applications, providing protection for power conversion equipment at a rated voltage of 690VAC IEC and 700VAC UL. This variant, size 33, is capable of handling an impressive current rating of 1000A and demonstrates a maximum interrupting capacity of 200kA.
Engineered specifically for the protection of semiconductors, including diodes, thyristors, and IGBT devices, this fuse-link features a robust construction with die-cut elements embedded in solidified sand, effectively controlling arcing characteristics. The low I²t clearing value of 990 kA²s and melting I²t of 170 kA²s enhance performance during fault conditions.
All contact surfaces are silver-plated, ensuring optimal conductivity, while the non-magnetic hardware contributes to reliable operation. Additionally, the fuse-link can be fitted with a low voltage trip-indicator to activate a field mountable microswitch, facilitating greater operational safety. It is suitable for bolted mounting and is made with a ceramic insulating body material.
Offer details
- Best offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees- Availability:
- 0 pcs.On RequestUpdated at: 14-09-2026
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Mersen
- Ampere Rating
- 1000 A
- Rated Voltage Ac Iec
- 690 V
- Rated Voltage Ac Ul
- 700 V
- Ac Max I R Breaking Capacity I1
- 200 kA
- Clearing I2T At Rated Voltage
- 990 kA²s
- Melting I2T
- 170 kA²s
