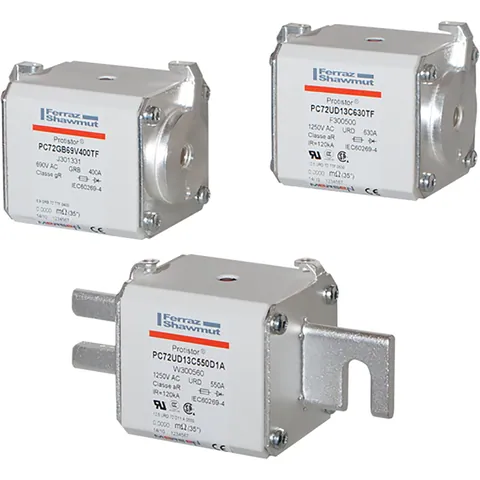

Mersen V302215
Size 72 type DIN110 gR 400 A 690VAC
Product Description
The Protistor® fuse-links rated for 690V deliver versatility in equipment design along with comprehensive protection for power conversion applications. Featuring a square body, these fuse-links come in various sizes and are compatible with multiple mounting styles recognized worldwide. The gR type is specifically designed to safeguard against overloads and short circuit faults, ensuring optimal performance.
Constructed with pure silver, the die-cut elements are encased in solidified sand, which effectively manages arcing characteristics, resulting in a lower I²t and a high interrupting rating of 150 kA. The silver-plated contact surfaces and non-magnetic hardware enhance reliability. Additionally, each fuse-link can be optionally fitted with a low voltage trip-indicator, capable of operating a field-mountable microswitch, thereby improving operational safety.
Offer details
- Best offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees- Availability:
- 0 pcs.On RequestUpdated at: 05-09-2026
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Mersen
- Ampere Rating
- 400 A
- Rated Voltage Ac Iec
- 690 V
- Ac Max I R Breaking Capacity I1
- 150 kA
- Clearing I2T At Rated Voltage
- 200 kA²s
- Melting I2T
- 34.1 kA²s
- Power Dissipation At Rated Current Value
- 65 W
