Mersen W300054
Protistor SB fuse-link aR, 690VAC, sz.30, 160A, TTF threaded terminals
1 / 2

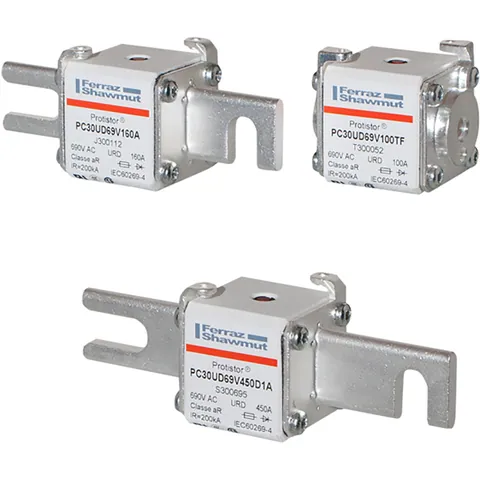

Manufacturer catalogue image
Manufacturer catalogue image
Product Description
The 690/700V Protistor® fuse-links range provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, IGBT and MOSFET devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees- Availability:
- 0 pcs.On RequestUpdated at: 05-09-2026
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Mersen
- Ampere Rating
- 160 A
- Rated Voltage Ac Iec
- 690 V
- Rated Voltage Ac Ul
- 700 V
- Ac Max I R Breaking Capacity I1
- 200 kA
- Clearing I2T At Rated Voltage
- 9.2 kA²s
- Melting I2T
- 1.6 kA²s
