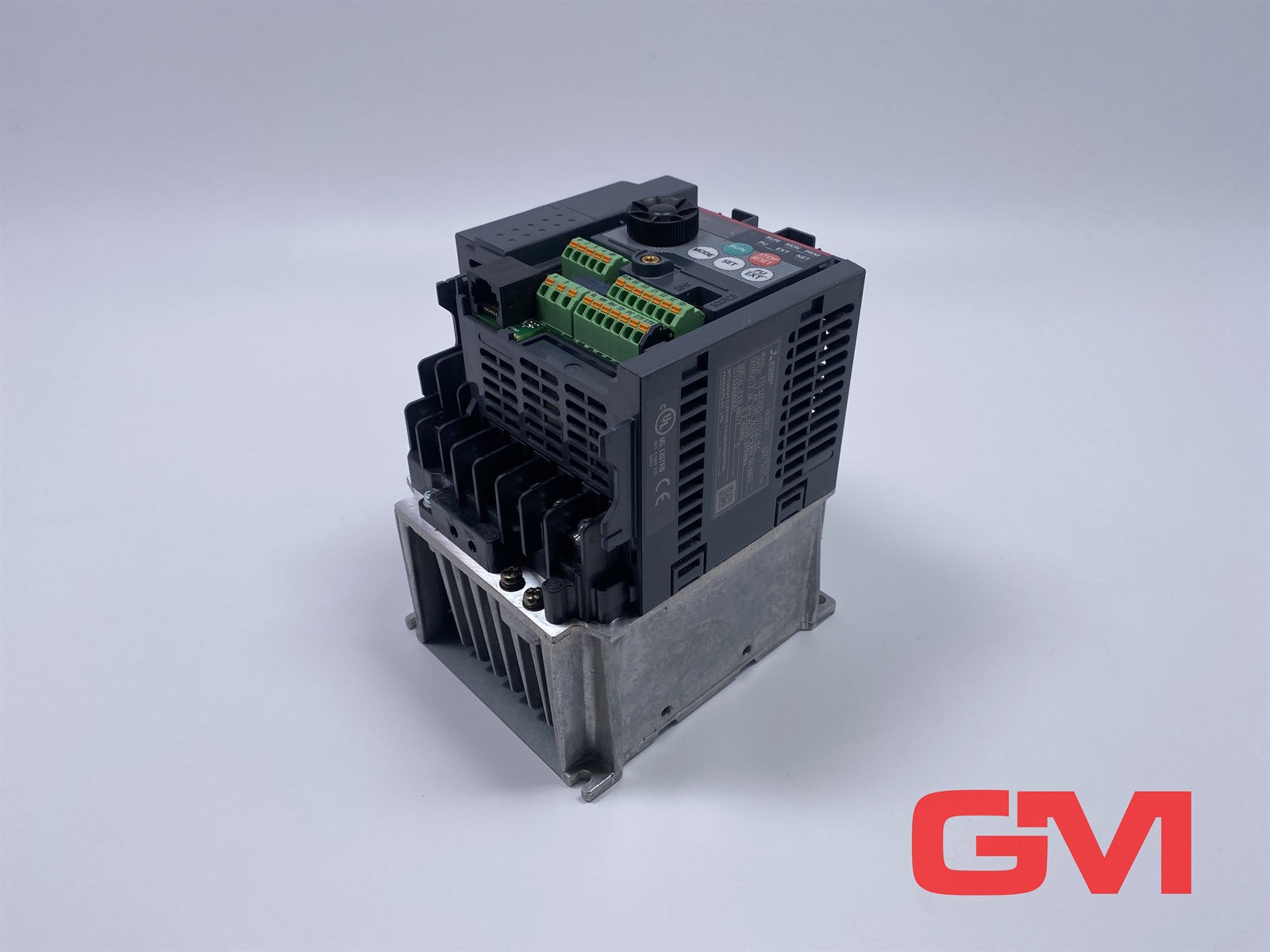

Mitsubishi FR-D720S-070SC-EC

The Mitsubishi FR-D720S-070SC-EC Inverter is a compact and efficient solution designed for a wide range of industrial applications. With a rated power of 1.5kW and a single-phase input voltage range of 200-240V, this inverter is ideal for driving induction motors. It features advanced control methods such as V/F Control, Soft-PWM/High Frequency PWM, and Magnetic Flux Vector Control, ensuring precise and reliable motor operation.

Designed with user convenience in mind, the FR-D720S-070SC-EC includes a built-in 4-digit LED display for easy monitoring and configuration. It offers multiple integrated I/O options, including 5 digital inputs, 1 transistor output, 1 relay output, 2 analog inputs, and 1 analog output. The spring clamp terminal block ensures secure and straightforward wiring.

Safety and compliance are paramount, with features such as Safe Torque Off (STO) and compliance with CE, UL/cUL, EAC, and UKCA standards. The inverter also supports the MODBUS-RTU communication protocol via its RS-485 port, enabling seamless integration into existing systems.

With an IP20 protection class, the FR-D720S-070SC-EC is suitable for installation in controlled environments. Its compact dimensions (108mm width, 128mm height, 150mm depth) and lightweight design (1.5kg) make it easy to install and maintain.
