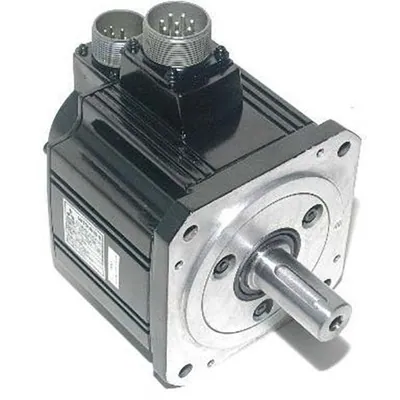

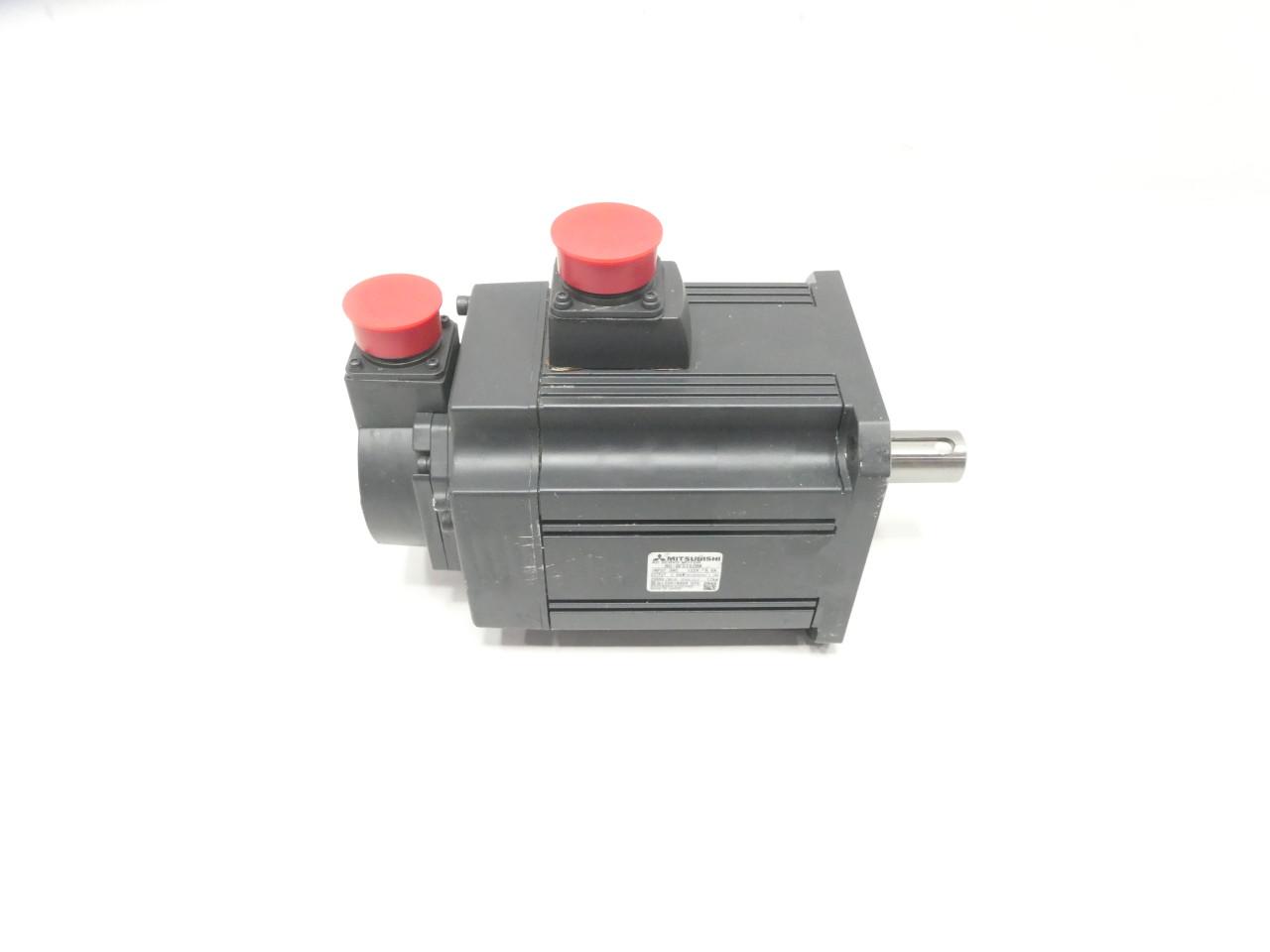

Mitsubishi HC-SFS152BK

The Mitsubishi MELSERVO J2S AC Servo Motor is a high-performance solution designed for precise motion control applications. This servo motor features a keyed shaft, built-in electromagnetic brake, and a 17-bit absolute feedback encoder for enhanced accuracy and reliability. With a rated output of 1500W (1.5kW) and a nominal torque of 7.16Nm, it is suitable for medium inertia and medium power capacity requirements.

The motor operates at a rated speed of 2000rpm and can reach a maximum speed of 3000rpm. It is designed for a supply voltage of 200Vac and a rated current of 9A. The robust construction includes an IP65 protection rating, ensuring durability in challenging environments.

Installation is straightforward with a 130x130mm flange mounting, and the motor's compact dimensions (H176mm x W130mm x D258mm) make it easy to integrate into various systems. The oil seal and medium inertia design further enhance its performance and longevity.

This servo motor is compliant with industry standards and is ideal for applications requiring precise control, such as robotics, CNC machinery, and automated manufacturing systems.
