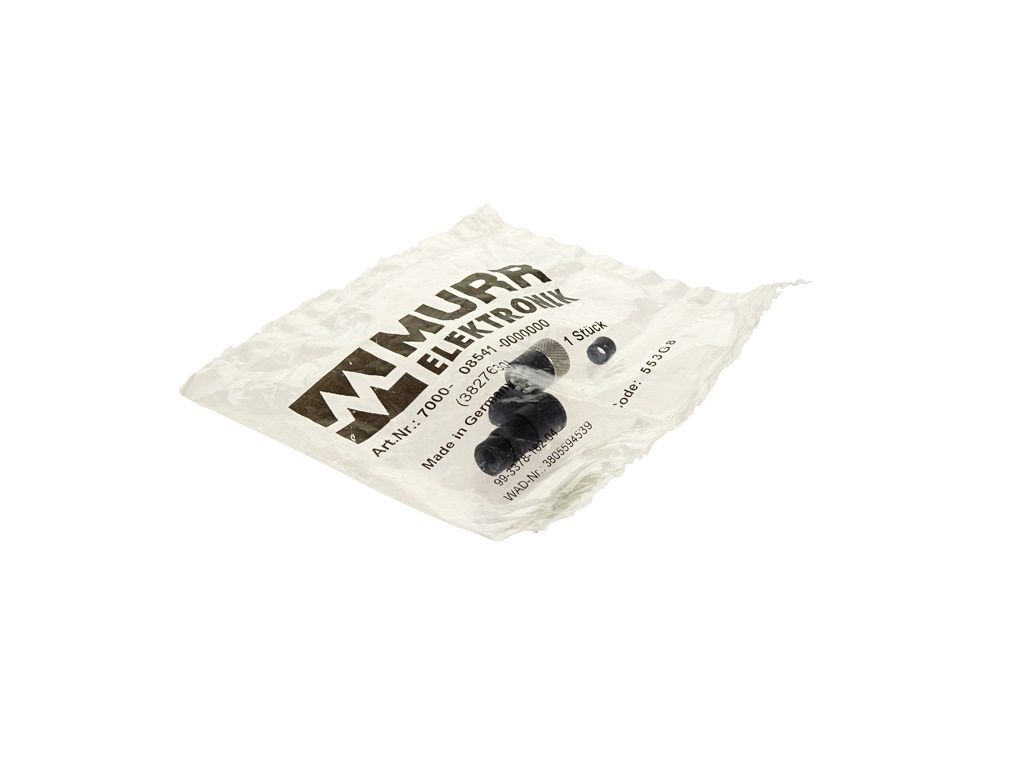

Murrelektronik 7000-08541-0000000

The Murrelektronik M8 Female 90° Connector is a high-quality, reliable solution for industrial automation applications. Designed with a 90° angle and featuring 4 poles, this connector ensures secure and efficient electrical connections. It supports a maximum connection cross section of 0.25 mm², making it suitable for various wiring requirements.

With an IP67 protection rating according to EN IEC 60529, this connector is resistant to dust and water ingress when properly inserted and tightened. It can operate under a wide range of temperatures, from -25°C to 85°C, ensuring performance in diverse environmental conditions.

The connector is designed for both AC and DC applications, with a maximum operating voltage of 30V and a current rating of up to 4A per contact. Its compact dimensions (28 mm height, 18.5 mm width, and 12 mm depth) allow for easy integration into tight spaces.

Installation is straightforward with a rotation option of 90°, providing flexibility in outlet directions. The clamping range accommodates cables with diameters from 3.5 mm to 5 mm, ensuring a secure fit.

Important Installation Notes:

• Observe permissible bending radii to maintain IP protection.
• Use suitable measures like cable ties to protect connectors from mechanical loads.

This connector is ideal for applications requiring robust and reliable connections in harsh industrial environments.
