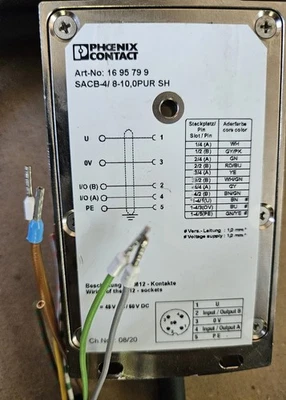

Phoenix Contact 1695799
Sensor/actuator box
1 / 2
Manufacturer catalogue image
Product Description
The sensor/actuator box is suitable for standard applications. It utilizes an M12 metal socket connection and includes 4 slots with a total of 5 positions, adhering to coding A - standard. The configuration is designed with a double slot assignment, while no status display is provided. The master cable connectivity is achieved through a fixed 180° connection, with a cable constructed from PUR/PVC, measuring 10 meters in length, and features shielding for enhanced durability.
This unit operates effectively across a wide temperature range, from -25 °C to 70 °C, and can withstand conditions as extreme as -40 °C to 90 °C when installed securely. For flexible installations, the operational range is -5 °C to 80 °C. The housing is made of aluminum, nickel-plated for additional protection, with internal components such as gold-plated contacts ensuring reliable connectivity.
The sensor/actuator box complies with the standard designation of M12 connector, meeting IEC 61076-2-101 regulations, and boasts a flammability rating of V0 according to UL 94. Its robust design is further supported by environmental compliance, ensuring no hazardous substances exceed threshold values, thus promoting environmentally friendly use.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
- Trusted supplier — Germany, member since 2025, 1–4 employees
- Availability:
- 1 pc.In-StockUpdated at: 06-09-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Phoenix Contact
- Slot/position = Wire color or connection
- 1 / 4 (A) = WH
- Slot/position = Wire color or connection
- 1 / 2 (B) = GY/PK
- Slot/position = Wire color or connection
- 2 / 4 (A) = GN
- Slot/position = Wire color or connection
- 2 / 2 (B) = RD/BU
- Slot/position = Wire color or connection
- 3 / 4 (A) = YE
- Slot/position = Wire color or connection
- 3 / 2 (B) = WH/GN
