Phoenix Contact 2296074

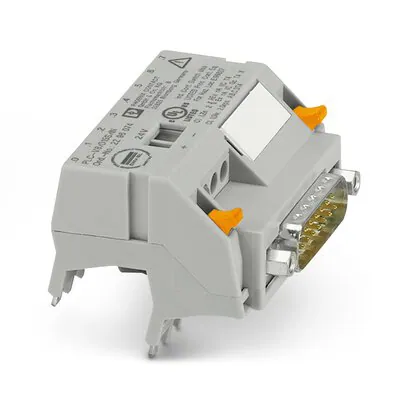

The V8 adapter is designed for seamless integration within PLC systems, specifically accommodating 8 x PLC-INTERFACE (6.2 mm) connections. It facilitates input card cabling through three distinct connection types: a single screw connection, a 15-position D-SUB pin strip, and a plug-in connection that can snap onto eight PLC-INTERFACE terminals.

This adapter operates with a control logic of plusschaltend, ensuring reliable performance across its eight channels. The device is constructed with functional insulation and adheres to IEC 60807-2 standards. It supports an operating voltage range of 18 V DC to 33.6 V DC and a rated insulation voltage of 50 V, making it suitable for various industrial applications.

With a compact design, the adapter measures 49.92 mm in width, 41 mm in height, and 49.86 mm in depth, and weighs 110.5 g including packaging. The housing is made from polyamide 6.6, featuring a gray color (RAL 7042) and a flammability rating of V0. It has a degree of protection rated at IP20 for the module, and ≥ IP54 for the installation location, ensuring durability in various environmental conditions.

For optimal performance, the specifications of the installation directive must be adhered to, and it is essential to comply with the safety instructions from third-party manufacturers when applicable. The V8 adapter is certified under TAE0000196, making it suitable for use in Class I, Zone 2 environments.
