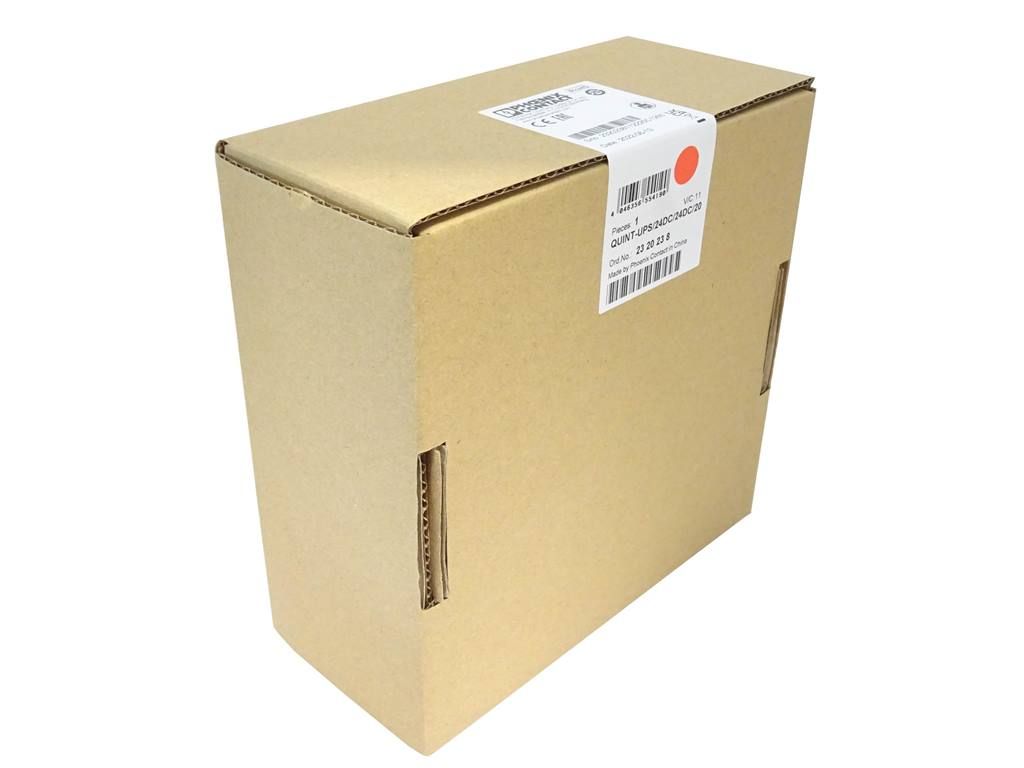

Phoenix Contact 2320238

This uninterruptible power supply features IQ technology, making it suitable for DIN rail installation. It accepts an input voltage of 24 V DC, with a nominal output voltage of 24 V DC and a maximum output current of 20 A. The device is equipped with a universal DIN rail adapter (UTA 107/30) for straightforward mounting.

The operational range for input voltage extends from 18 V DC to 30 V DC, ensuring compatibility with various systems. Efficiency in mains operation exceeds 98%, which contributes to minimal power dissipation of 2.7 W. This model supports a buffer period of 1 hour when paired with a battery module of 38 Ah, with a fixed backup threshold of ≤ 22 V DC.

Moreover, the product is designed to accommodate parallel connections of up to two modules with a redundancy module, enhancing system reliability. Noteworthy features include selective fuse breaking technology with a maximum current of 120 A and a response duration of 15 ms. The system's temperature compensation is preset at 42 mV/K, ensuring optimal performance across various ambient conditions.

Constructed from zinc-plated steel sheet and aluminum (AlMg3), this unit exhibits a degree of protection rated at IP20, suitable for environments with a maximum operational temperature range of -25 °C to 70 °C. This model adheres to several safety and electromagnetic compatibility standards, including EN 60950-1 and the Low Voltage Directive 2014/35/EC, ensuring its reliability in electrical power installations. The product...
