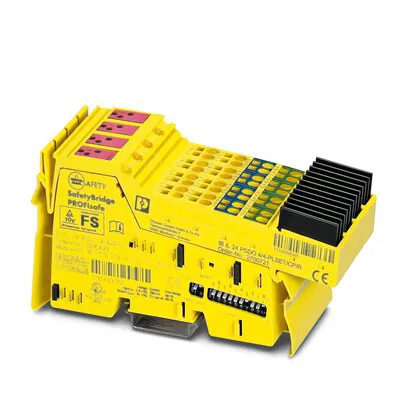

Phoenix Contact 2700804

This I/O component operates as a safety-related digital output module, providing four safe outputs configured for both positive and negative switching. It is engineered for integration within the SafetyBridge system and adheres to PROFIsafe and INTERBUS Safety protocols, achieving a safety integrity level of up to SIL 3, categorized as Cat. 4/PL e.

With a compact housing measuring 48.8 mm in width, 119.8 mm in height, and 71.5 mm in depth, this module is designed for industrial applications and is equipped with spring-cage connections for easy installation. It supports a transmission speed of 500 kbps to 2 Mbps, ensuring reliable communication within safety-critical systems. The module features a total output current capacity of 3 A, with a maximum output current of 2 A per channel, and operates at a nominal output voltage of 24 V DC.

The device also incorporates essential protective features, including overload and short-circuit protection for its outputs. Diagnostics messages alert users to any short-circuit or overload conditions via error codes on the bus and LED indicators. It is pluggable and allows for conductor cross-sections ranging from 0.2 mm² to 1.5 mm², making it versatile for various wiring configurations.

Operating within an ambient temperature range of -25 °C to 55 °C and with a protection class of IP20, this module is built to withstand typical industrial environments. It also meets stringent testing requirements with a test voltage of 500 V AC for various...
