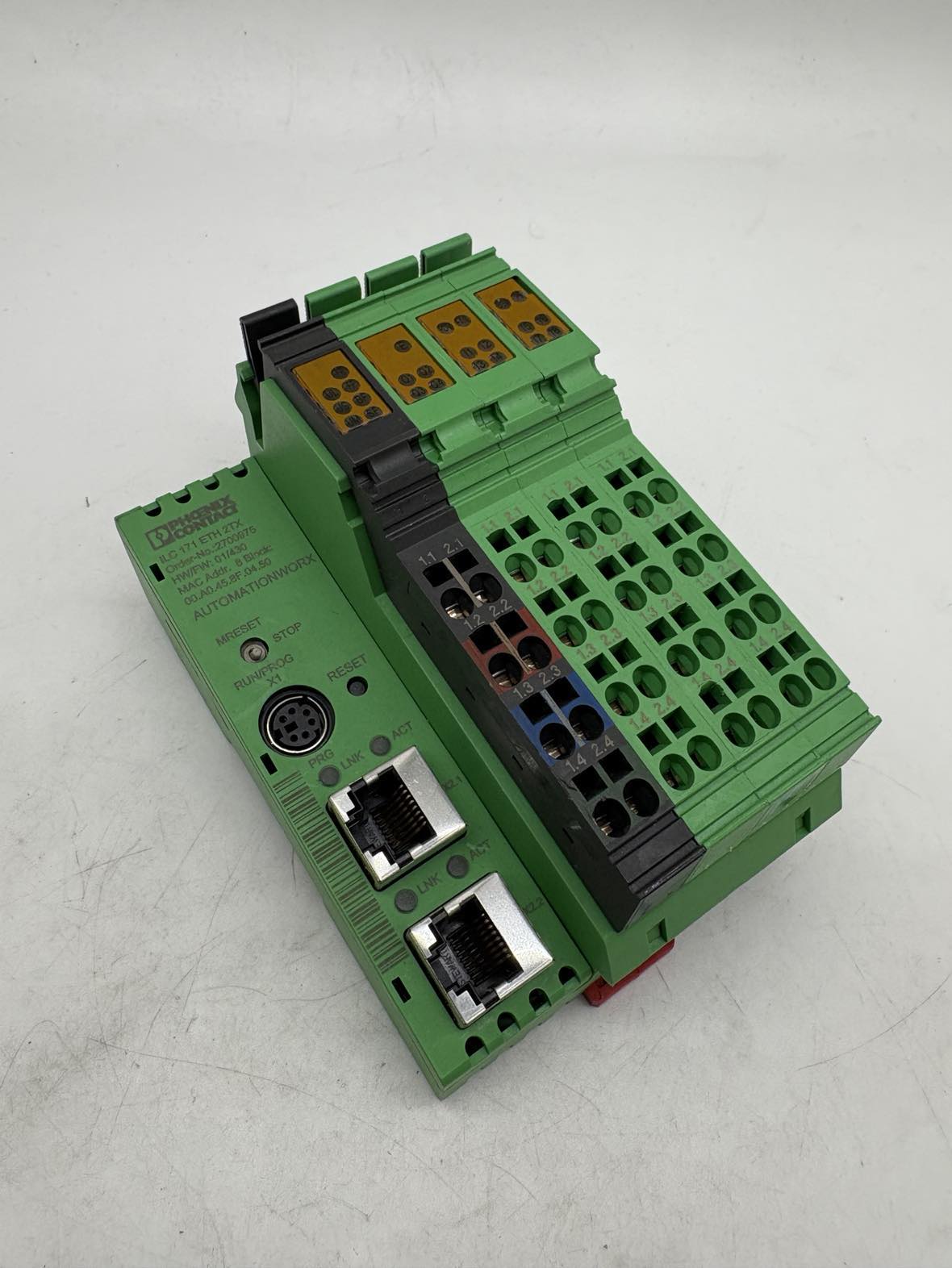

Phoenix Contact 2700975

The ILC 171 ETH 2TX Inline Controller is designed for industrial applications, supporting communication protocols such as PROFINET and Modbus/TCP. The programming is executed via PC Worx Express or PC Worx, adhering to IEC 61131-3 standards. Notably, this modular controller operates at a clock frequency of 64 MHz and includes 512 kByte of program memory along with 48 kByte of retentive data storage.

This device can manage up to 8 control tasks with a maximum internal Modbus/TCP client data capacity of 32,768 bits. It supports a total of 128 devices and allows connection of up to 63 local bus devices, ensuring versatility in complex setups. The controller can interface with up to 16 Modbus/TCP clients, enhancing its connectivity options.

In terms of input and output capabilities, the controller features 8 digital inputs with an input voltage range of -0.5 V to 30 V and 4 digital outputs, each capable of handling a maximum current of 500 mA. It operates within a supply voltage range of 19.2 V DC to 30 V DC and draws a maximum current of 8 A.

The ILC 171 ETH 2TX is housed in a compact design with dimensions of 80 mm in width, 119.8 mm in height, and 71.5 mm in depth, rated at IP20 for protection. It functions effectively in ambient temperatures ranging from -25 °C to 55 °C, making it suitable for diverse industrial environments. Additionally, it conforms to EMC directives ensuring immunity to electromagnetic interference.

For further details, this inline controller is classified...
