Phoenix Contact 2761499

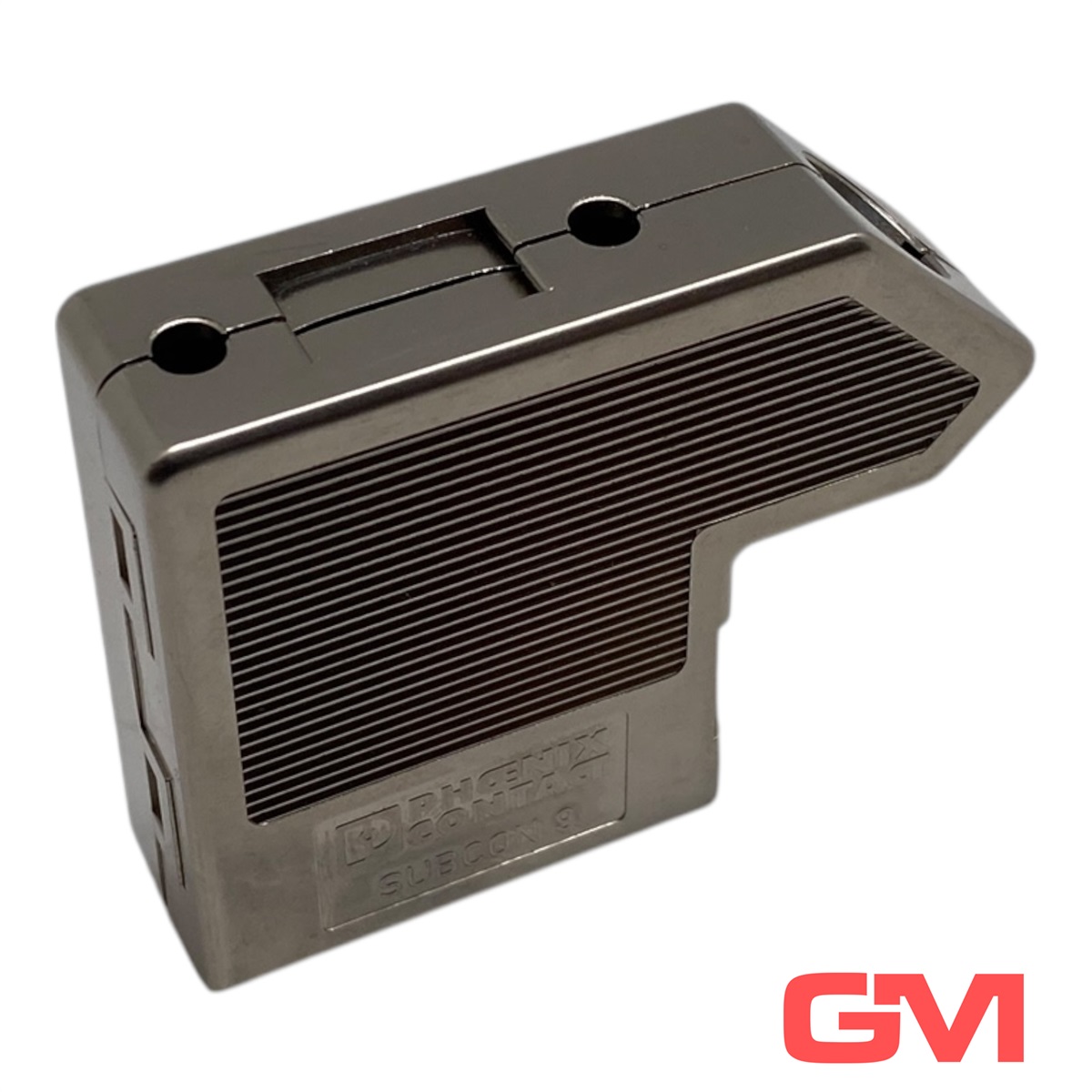

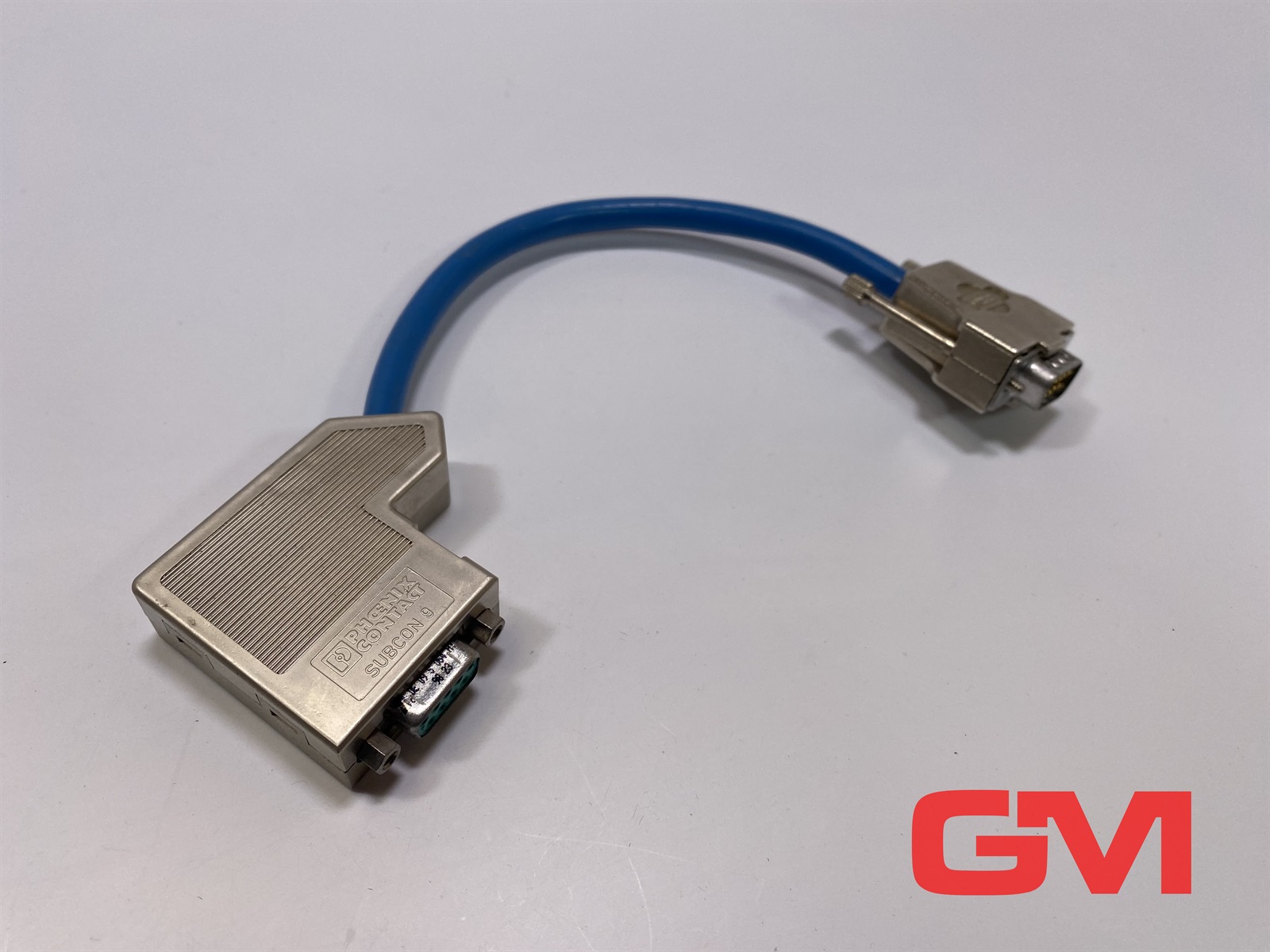

The D-SUB 9-position female connector is equipped with a 35° cable entry, facilitating versatile connections in various applications. Its design adheres to standard pin assignments, connecting pins 1 through 9 to a screw terminal block, ensuring straightforward integration.

Manufactured in Germany, this connector is intended solely for industrial use, with a nominal voltage of 50 V DC and a current rating of 100 mA. The robust ABS housing is metal-plated, providing durability while accommodating an external cable diameter ranging from 4 mm to 10 mm. The connector supports a wire cross-section of rigid conductors from 0.14 mm² to 1.5 mm² and flexible conductors from 0.14 mm² to 1 mm², with an insertion/withdrawal cycle rating exceeding 200.

In terms of environmental resilience, the connector operates effectively within a temperature range of -20 °C to 75 °C and is rated for an ambient humidity of 10% to 95% (non-condensing). It complies with vibration resistance standards (EN 60068-2-6) and shock resistance standards (EN 60068-2-27), allowing it to withstand operational stresses of 5g and 15g respectively. The degree of protection is rated at IP20, suitable for a variety of industrial applications. Note: Please follow the special installation instructions in the documentation. For altitude operation, restrictions apply as per the manufacturer's declaration.
