Phoenix Contact 2862165

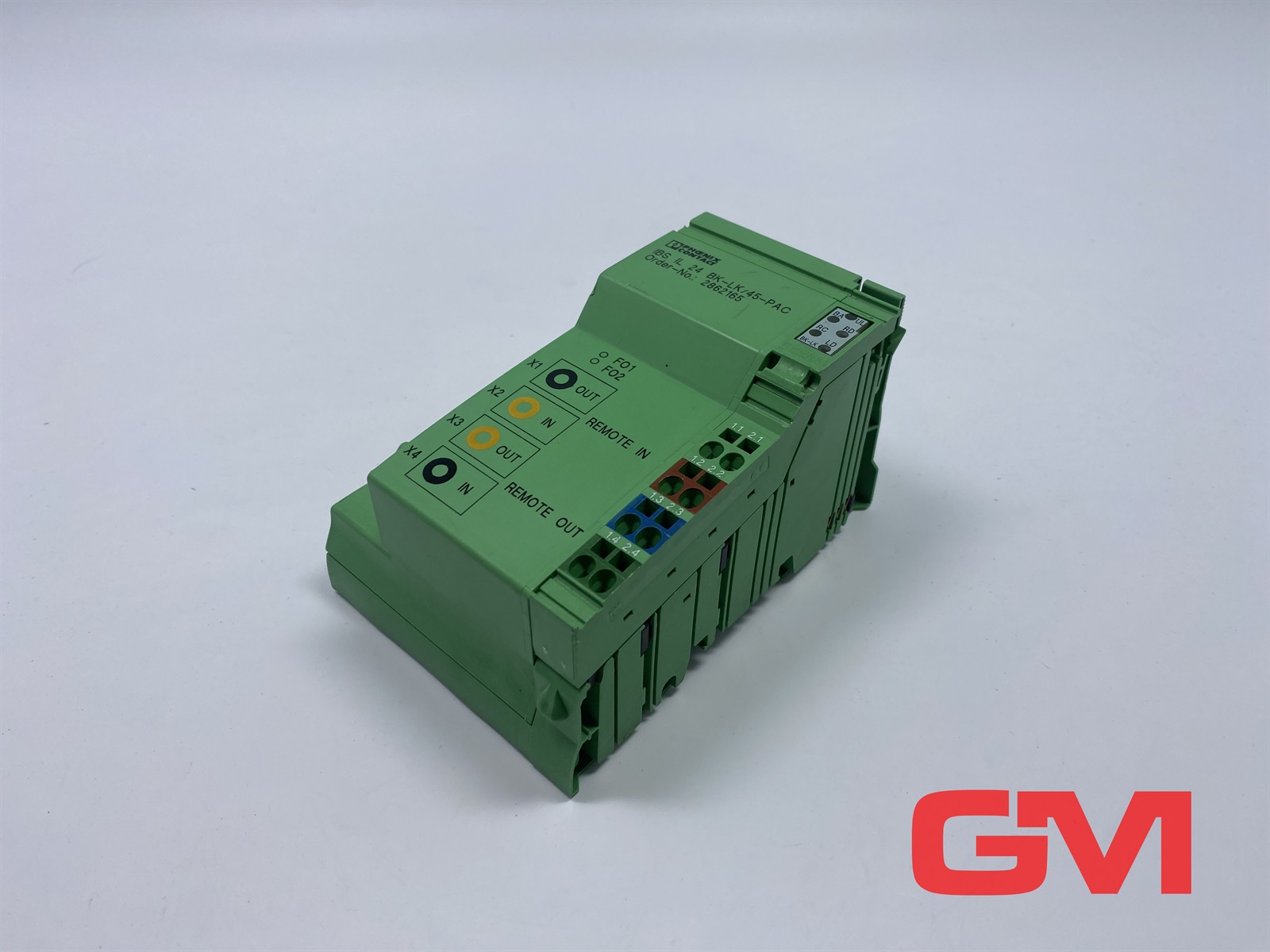

The IL 24 BK-LK/45-PAC is an Inline bus coupler adhering to the INTERBUS standard, featuring a slanted F-SMA connector suitable for fiber optic connections. It operates with a transmission speed of 500 kbps and is rated with a degree of protection of IP20. This product includes an Inline connector and a labeling field for ease of identification.

With a compact design, the unit measures 85 mm in width, 119.8 mm in height, and 71.5 mm in depth. It supports a maximum of 63 devices on the local bus and has a parameter channel capacity for up to 62 devices. The bus coupler can connect to a maximum of 15 branch terminals with remote bus branches.

The device operates within a supply voltage range of 19.2 V DC to 30 V DC and is equipped with reverse polarity protection. It has a maximum current draw of 1.25 A when the maximum number of I/O terminal blocks is connected. The operational temperature range of this unit is from -25 °C to 55 °C, and it can withstand air pressure variations from 80 kPa to 106 kPa, suitable for high-altitude environments.

For installation, the device is designed for DIN rail mounting, making it suitable for various industrial applications. The product is manufactured in Germany, reflecting strict quality standards.
