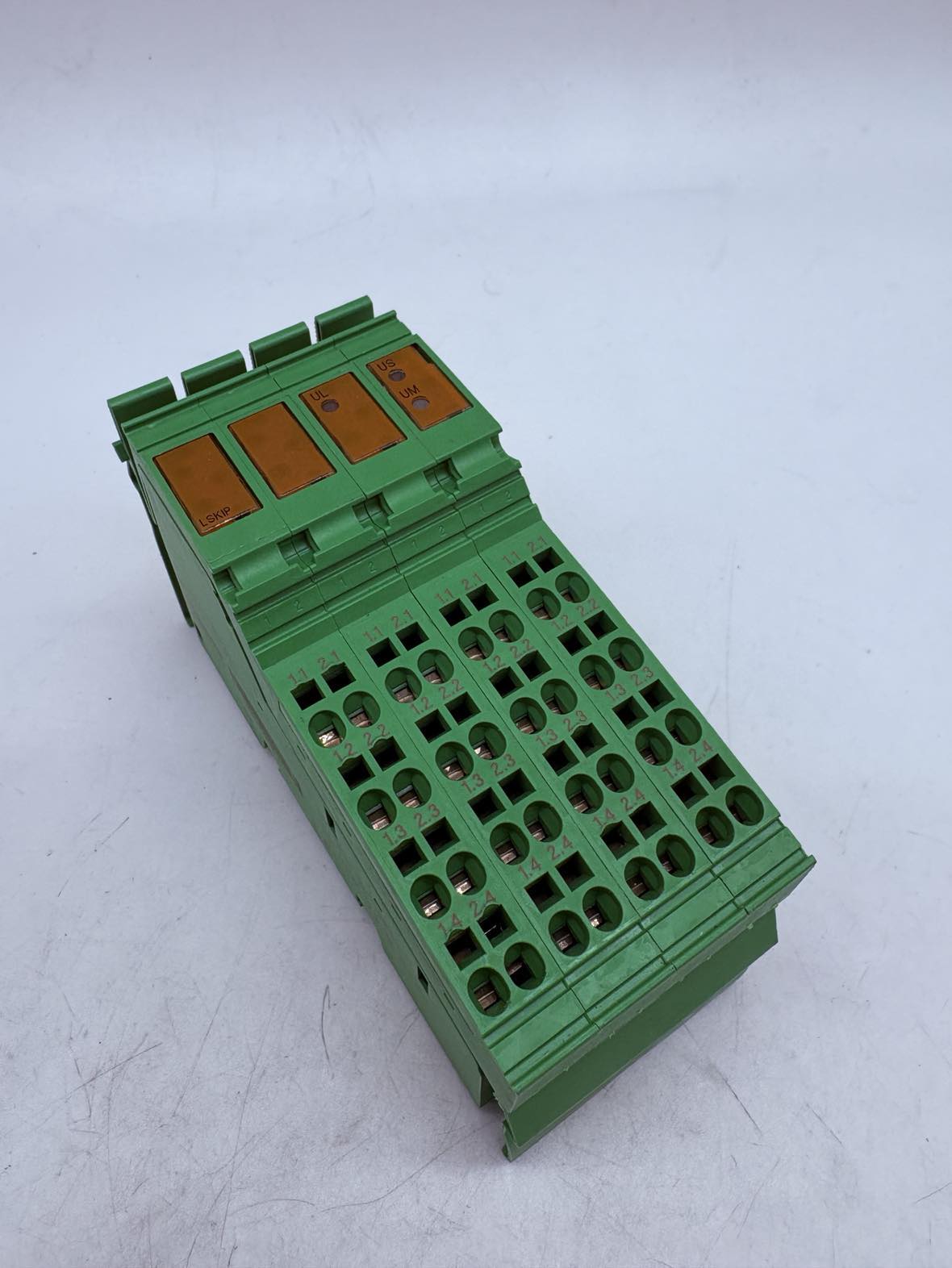

Phoenix Contact 2897457

This Inline Coupler Terminal serves to extend the Inline local bus, enabling connectivity for up to 63 local bus devices without the need for an additional power terminal block, while adhering to an allowable total current consumption. The module operates at transmission speeds of 500 kbps and 2 Mbps, with a degree of protection classified as IP20, making it suitable for industrial applications.

Constructed for installation within control cabinets, the module measures 48.8 mm in width, 135 mm in height, and 71.5 mm in depth. It employs a spring-cage connection method using standard INTERBUS cables. The device draws a maximum current of 1.25 A at nominal voltage, which comprises 0.75 A for communications power and 0.5 A for analog voltage supply.

In terms of environmental resilience, the Inline Coupler Terminal operates effectively within a temperature range of -25 °C to 55 °C, and withstands air pressure variations from 70 kPa to 106 kPa. For storage and transport, it can endure temperatures from -25 °C to 85 °C under similar air pressure conditions. The device is designed to function within a relative humidity range of 10% to 95% without condensation.

This product, identified by the designation code, is equipped with surge protection for both segment and main supplies, ensuring reliable operation in various industrial settings.
