Phoenix Contact 2897813

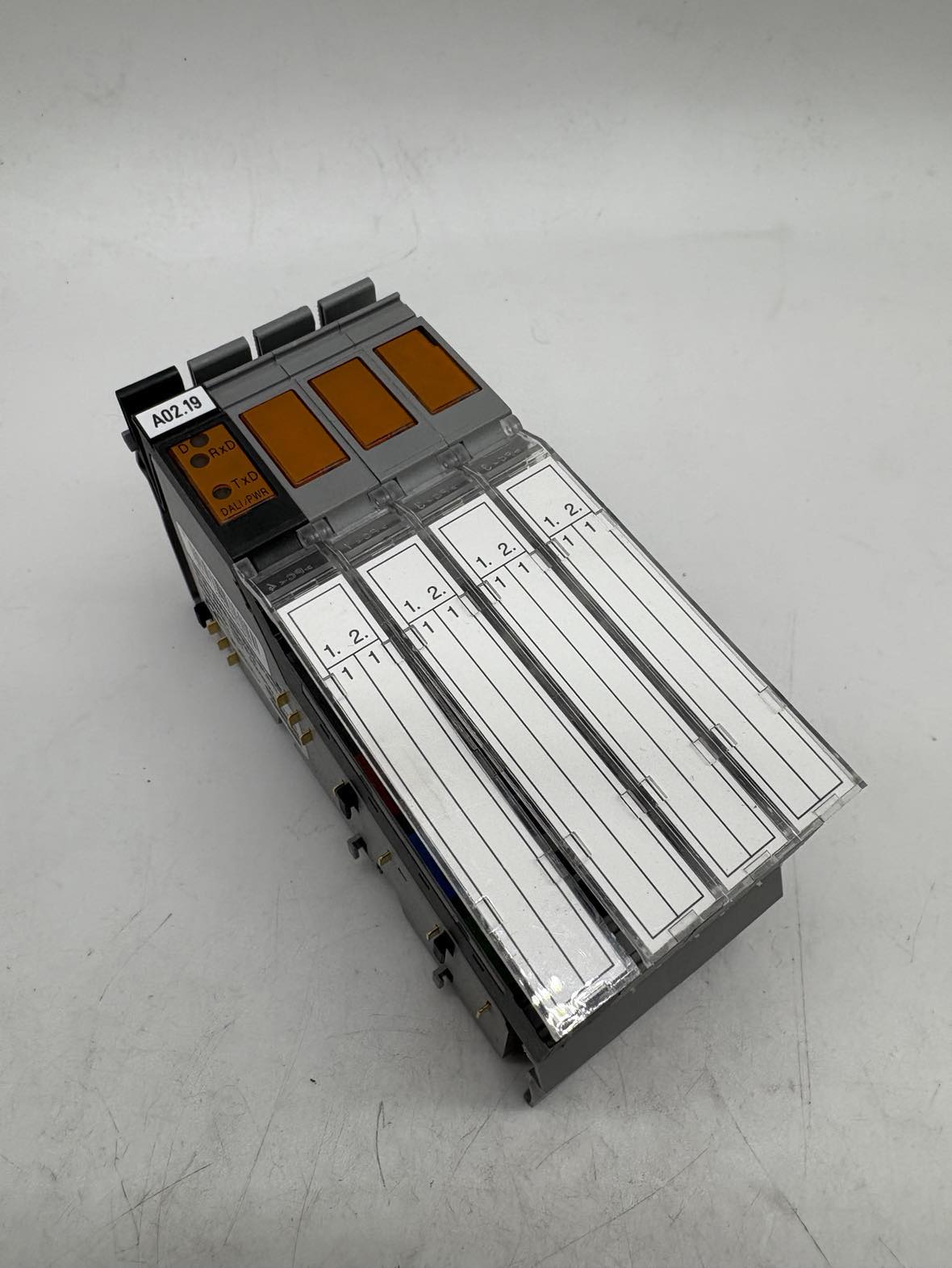

The IB IL DALI/PWR-PAC serves as an inline DALI master equipped with an integrated DALI power supply unit. It ensures safe electrical isolation and operates with a local bus transmission speed of 500 kbps. Designed for industrial applications, it features a degree of protection rated at IP20, making it suitable for control cabinet installations.

This module supports a supply voltage range of 19.2 V DC to 30 V DC and can connect up to three local bus devices, utilizing DALI extension terminals. Its current carrying capacity reaches a maximum of 128 mA, with a short-circuit output current limit set at 250 mA. The module also incorporates spring-cage connections for reliable wiring.

With a compact design measuring 48.8 mm in width, 119.8 mm in height, and 71.5 mm in depth, this module is lightweight, weighing 286 g without packaging. It operates effectively within an ambient temperature range of -25 °C to 60 °C and can withstand air pressures from 80 kPa to 106 kPa at elevations up to 2000 m.

The product is characterized by its modular design, with a maximum power dissipation of 10.6 W and a process data channel of 32 bits. Additional features include a required parameter data size of 1 Byte and a configuration data requirement of 5 Bytes.
