Phoenix Contact 3273070

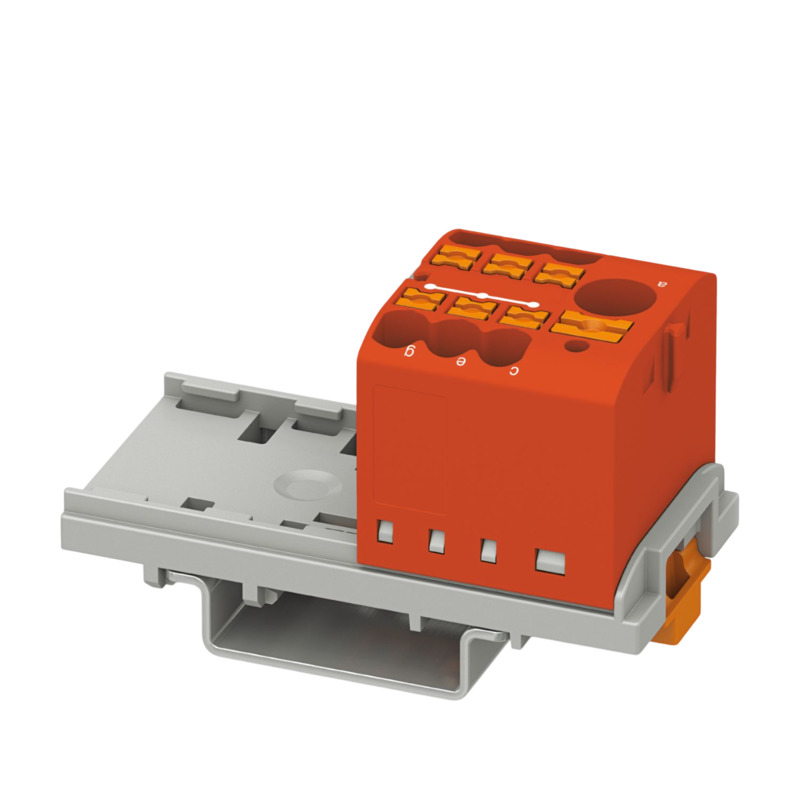

The PTFIX 6/6X2,5-NS35 RD distribution block is designed for efficient electrical connectivity, supporting a nominal voltage of 690 V and a nominal current of 24 A. It employs a push-in connection method, accommodating conductor cross-sections ranging from 0.14 mm² to 4 mm² for load contacts, and a rated cross section of 6 mm² for line contacts, with a broader range of 0.5 mm² to 10 mm² available.

This block is capable of bridging with others via the conductor shaft, allowing for modular expansions with corresponding plug-in bridges that can be found in the accessories section. It is compatible with mounting types NS 35/7.5 and NS 35/15, and is available in a red color (RAL 3001).

Constructed with a maximum load current of 57 A for a 10 mm² conductor cross-section, the distribution block also features a maximum total current rating of 57 A. The device is compliant with IEC 60947-7-1 standards, ensuring reliability in various applications.

With a compact design, its dimensions are 28.6 mm in width and 58.1 mm in height, while the depth varies between 30.4 mm on NS 15 and 32.4 mm on NS 35/7.5. The block operates effectively within a temperature range of -60 °C to 110 °C, making it suitable for challenging environments.
