Phoenix Contact 3273078

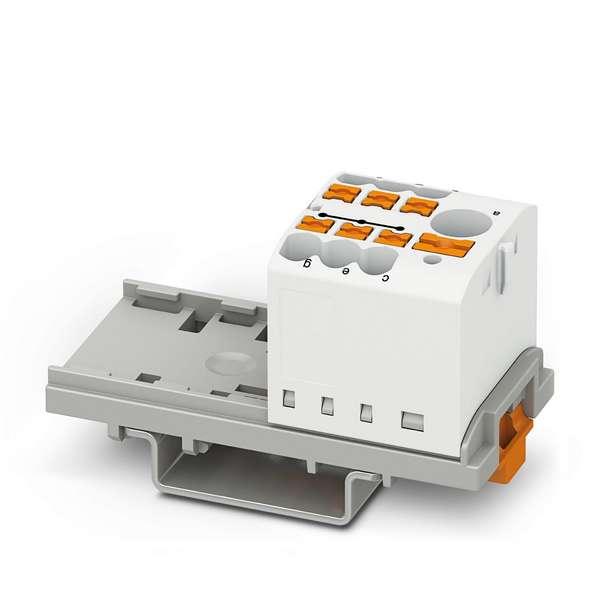

The PTFIX 6/6X2,5-NS35 WH distribution block is designed for efficient bridging via the conductor shaft, allowing integration with corresponding plug-in bridges available as accessories. With a nominal voltage rating of 690 V and a nominal current of 24 A, this block is suitable for various applications.

The push-in connection allows for a versatile range of conductor cross-sections from 0.14 mm² to 10 mm², accommodating both rigid and flexible conductors. Its rated cross-section is 6 mm², which supports reliable performance in demanding environments.

Constructed to mount on NS 35/7.5 and NS 35/15 rail types, this block has a white color finish (RAL 9010) and measures 28.6 mm in width, 58.1 mm in height, and has varying depths depending on the mounting type. The design also adheres to strict fire protection and insulation standards, making it suitable for use in rail vehicles and other critical applications.

The distribution block features an overvoltage category of III and a pollution degree of 3, ensuring it meets high safety and operational standards. The maximum load current is rated at 57 A when utilizing a 10 mm² conductor cross-section, and it is designed to operate within a temperature range of -60 °C to 110 °C.
