Phoenix Contact 3273238
Distribution Block PTFIX 6/12X2,5-NS35A OG
1 / 2

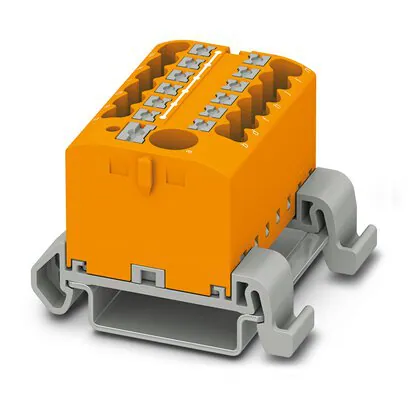

Manufacturer catalogue image
Product Description
The PTFIX 6/12X2,5-NS35A OG distribution block is designed for efficient electrical connections, allowing bridging between blocks via the conductor shaft. It operates at a nominal voltage of 690 V and can handle a nominal current of 24 A. The connection method is push-in, accommodating conductor cross-sections from 0.14 mm² to 4 mm², with a rated cross-section of 6 mm².
This block is suitable for mounting on NS 35/7.5 and NS 35/15 rails and is colored orange (RAL 2003). The device has a total of 13 connections, arranged in one row, meeting the IEC 60947-7-1 standard. With a maximum load current of 57 A when using a conductor cross-section of 10 mm², the block is engineered for robust performance in demanding environments.
Notable specifications include a flammability rating of V0 according to UL 94 and compliance with multiple fire protection standards for rail vehicles. The operational temperature range extends from -60 °C to 110 °C, making it suitable for various industrial applications.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees- Availability:
- 0 pcs.On RequestUpdated at: 06-09-2026
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Phoenix Contact
- Nominal Current
- 24 A
- Connection Method
- Push-in connection
- Cross Section
- 0.14 mm² - 4 mm²
- Rated Cross Section
- 6 mm²
- Mounting Type
- NS 35/7
- Color
- Orange
