Prosoft MVI56-HART

Name: HART Master Multi-drop Network Interface Module for ControlLogix
Brand: Prosoft
SKU: MVI56-HART

HART Master Multi-drop Network Interface Module for ControlLogix

1 / 2

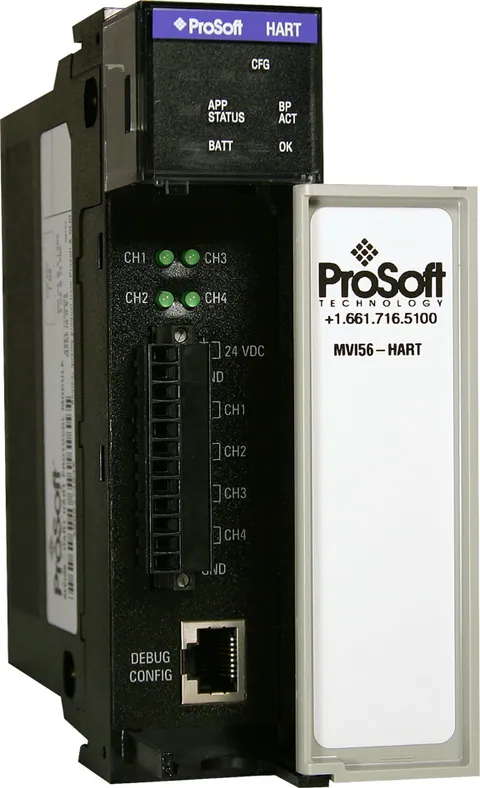

Manufacturer catalogue image

Product Description

The MVI56-HART Master Multi-drop Network Interface Module, developed by Prosoft, is a versatile solution designed for efficient communication between ControlLogix I/O compatible processors and HART slave devices. This module supports up to 15 devices on each HART channel, with four channels available on the module itself. Each port is individually configurable, allowing for master protocol commands to interface with slave devices on their own networks.

Data exchange between the HART network and the ControlLogix processor is facilitated through the internal database contained within the module and direct control by the processor's ladder logic and pre-defined data objects (5000 registers maximum). This module is an ideal choice for industrial applications in various sectors, including chemical and refining operations, gas and liquid distribution systems, and remote offshore monitoring stations. It addresses a wide range of control, data acquisition, and maintenance requirements.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — United States, member since 2023
Availability:: 3 pcs.
In-Stock
Updated at: 05-09-2026
Warranty:: 12 months
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Prosoft
Protocol Supported: HART protocol uses the Bell 202 standard frequency shift-keying (FSK) digital signal to communicate at 1200 baud, superimposed at a low level on the 4 to 20mA analog measurement signal.
Supported Function Codes: HART Universal Commands Set supported are 00 to 03, 06 to 09, and 11 to 22. HART Common Practice Commands Set supported are 33 to 83 and 105 to 110.
HART Network Communications: Supports four master channels. Each channel on the module is configured independently to emulate a HART master. Burst mode can be used for faster update of data from a slave device.
Status: Error codes returned by the HART protocol available on an individual command basis. In addition, a slave status list is maintained per active channel.
