Prosoft RLX2-IHNF-A

Name: 802.11abgn Fast Industrial Hotspot RLX2 (FCC)
Brand: Prosoft
SKU: RLX2-IHNF-A

802.11abgn Fast Industrial Hotspot RLX2 (FCC)

1 / 4

Manufacturer catalogue image

Product Description

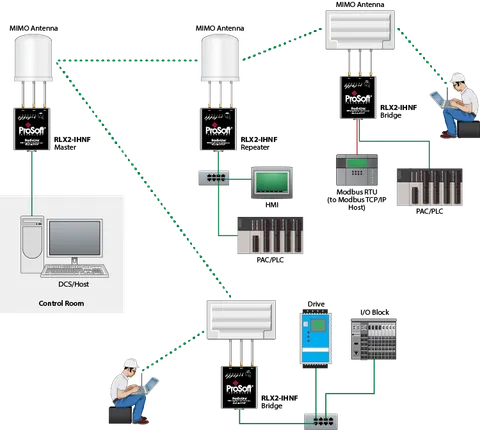

The ProSoft Technology Fast Industrial Hotspot (RLX2-IHNF) provides secure wireless solutions for plant-floor, SCADA automation, process control systems, and mobile worker Wi-Fi infrastructure. It operates in the 2.4 or 5 GHz bands, including DFS channels, and is good for applications up to 2 mi. / 3.2 km. The Hotspot supports Access Point, Repeater, and Client modes. 802.11n technology delivers fast data rates up to 300 Mbps. This provides excellent packet-per-second performance and robust communications in rugged industrial environments. The 802.11n MIMO & Channel bonding supports demanding wireless applications such as Ethernet I/O and high-resolution video. The included IH Browser configuration and monitoring software allows the user to view network topology, assign IP addresses, monitor network diagnostics, and update radio firmware. The optional OPC Diagnostic Server is ideal for managing long-range wireless SCADA networks.

Key Features:

Advanced 802.11n MIMO & Channel bonding

Fast data rates up to 300 Mbps

Supports Access Point, Repeater, and Client modes

Secure networking with 128-bit AES encryption

Optional OPC Diagnostic Server

Perfect for:

Plant-floor automation

SCADA systems

Process control systems

Mobile worker Wi-Fi infrastructure

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — United States, member since 2023
Availability:: 3 pcs.
In-Stock
Updated at: 05-09-2026
Warranty:: 12 months
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Prosoft
Frequency: 2.412 GHz to 2.462 GHz (FCC), 2.412 GHz to 2.472 GHz (ETSI/NTRA), 5.150 GHz to 5.250 GHz (FCC/ETSI/NTRA), 5.260 GHz to 5.350 GHz (NTRA), 5.260 GHz to 5.580 GHz (FCC/ETSI), 5.660 GHz to 5.700 GHz (FCC/ETSI), 5.725 GHz to 5.850 GHz (FCC)
Standards: 802.11n, 802.11a, 802.11g, 802.11h (DFS), 802.11i (Security), 802.11e (QoS), 802.112Q (VLAN), 802.113af (PoE), IGMPv2
Power: 22 dBm @ MCS0, MCS8 (802.11an/gn), 17 dBm @ MCS7, MCS15 (802.11an/gn), 22 dBm @ 6 Mbps (802.11a/g), 17 dBm @ 54 Mbps (802.11a/g)
Rates: MCS0 through MCS15, 1 Channel or 2 Channels with 1 Stream or 2 Streams, 6.5 Mbps to 300 Mbps
Sensitivity: -92 dBm @ MCS0, MCS8 (802.11an/gn), -70 dBm @ MCS7, MCS15 (802.11an), -74 dBm @ MCS7, MCS15 (802.11gn), -92 dBm @ 6 Mbps (802.11an/gn), -74 dBm @ 54 Mbps (802.11a), -78 dBm @ 54 Mbps (802.11g)
Security Features: WPA2 Personal/Enterprise – 802.11i AES, WPA2 Personal – 802.11i AES w/ Passphrase, Legacy WPA TKIP, WEP support, MAC ID filter, RADIUS
