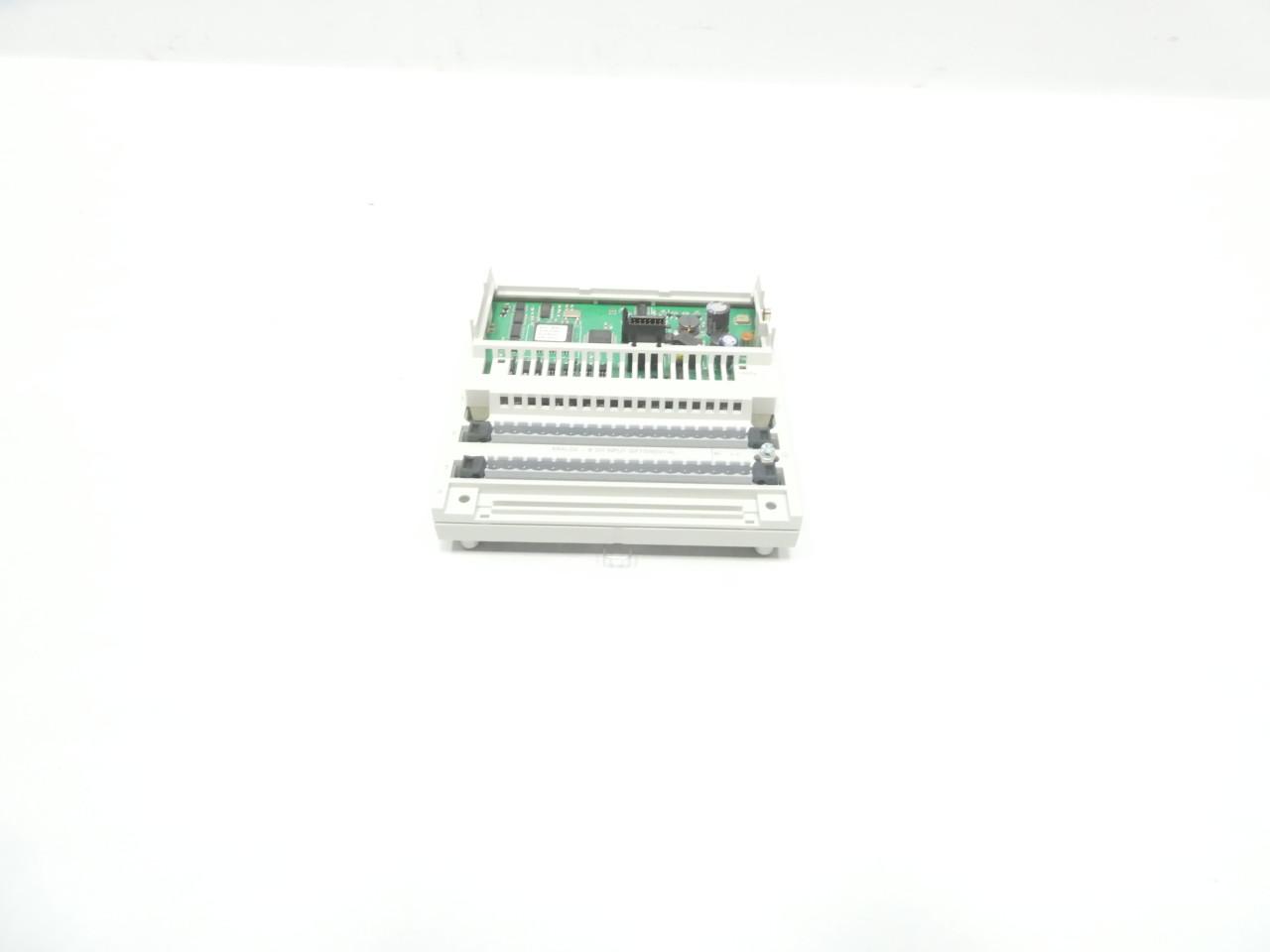

Schneider Electric 170AAI03000

This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog input base offers 8 inputs with a full 16bit signed resolution. It offers differential analog input ranges from ±20mA, 4mA to 20mA, ±10V, ±5V and 1V to 5V. There is an isolation between channels and bus, channels and ground at 500V AC. It is furnished with 2 removable terminal blocks for electrical connection. It features 1 LED for ready and 8 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN 50081-2 and IEC 1131 standards. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
